Product Detail

Essential details

Place of Origin:: Guangdong, China

Brand Name:: YIT

Model Number:: YIT-60A-48

Type:: PWM

Application:: Charger Controller, Solar Working Station

Work Time (h):: Continue

Max PV Voltage:: 48v

Certificate:: ISO9001

Warranty:: 1 YEAR

MPPT efficiency:: 75%

Protection:: Protection

Color:: green

Display:: LCD Screen

Feature:: High Efficiency Charging Method

Name:: YIT-60A-48

Voltage:: 48v

Nominal current:: 60a

Control Mode:: Intelligent Control

Packaging & delivery

Packaging Details

Lead time:

Quantity(boxes)	1 - 50	>50
Lead time (days)	25	To be negotiated

Our Advantages

●20 YEARS industrial experience with three production bases in China . Owns advanced equipment and instruments and
builds Automatic production line.

●Automatic equipment production: stan dardizied quality、high efficiency production.

●Three-stage smart charging, Adjustable parameters by pressing buttons, 12V/24V/48V adaptive.

●Production: High voltage protection,Over load protection,Battery reverse connected protection, Low voltage protection,
Overheating protection, Output short-circuit protection.

●The maximum utilization rate of solar energy can reach 99%,
With super fast charging algorithm, efficiency increased by 30%

● Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and otherCERTIFICATIONS.

Product Paramenters

model	20A	30A	40A	50A	60A
system voltage	12V/24V(automatic switchover),or 48V
The maximum voltage input to the solar panel	50V(12V/24V),100V(48V)
Loss of self	≤13MA
maximum charging current	20A	30A	40A	50A	60A
maximum discharge current	20A	30A	40A	50A	60A
LVD Low voltage protection voltage	10.7V(10-13.8V),21.4V(20-27.6V),42.8V(40-55.2V)
LVR Low voltage reset voltage	12.6V(10.2-14V),25.2V(20.4-28V),50.4V(40.8-56V)
floating charge voltage	13.8V(13-15V),27.6V(26-30V),55.2V(52-60V)
Battery overvoltage protection	15V/30V/60V
Input reverse connection protection	yes
charging mode	PWM
temperature compensation	-24mv/℃,-48mv/℃,-96mv/℃, relative to 12V/24V/48Vsystem
operating temperature	-20℃-+55℃
Terminal scale	28-10AWG
waterproof rating	IP32

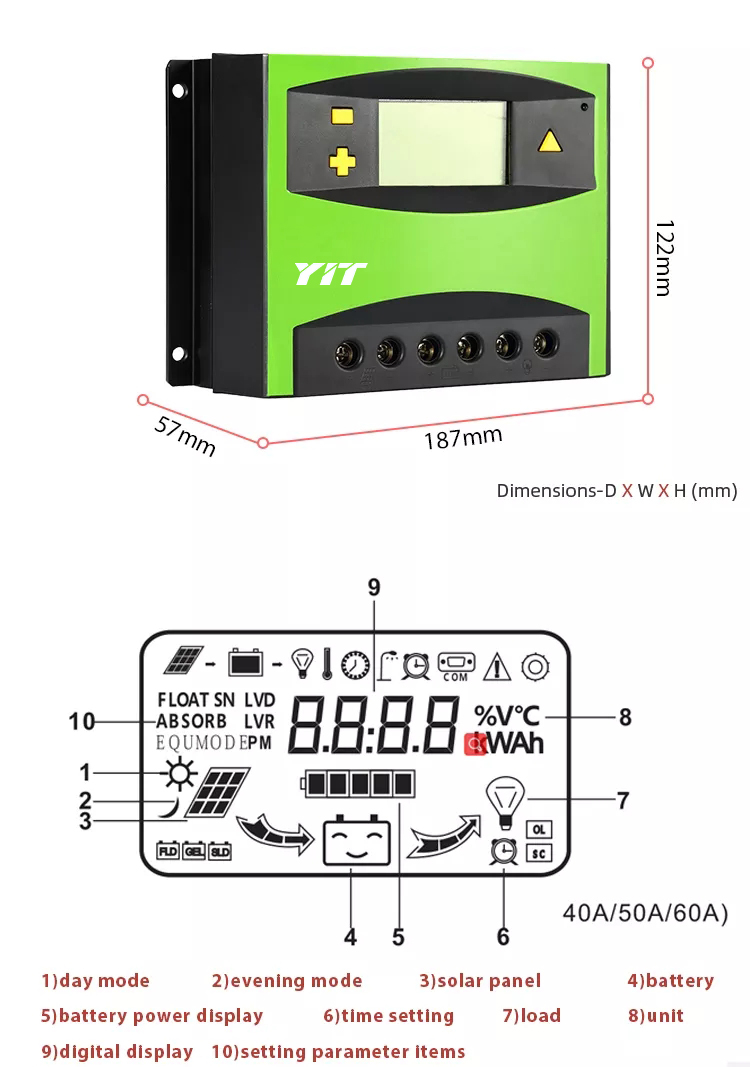

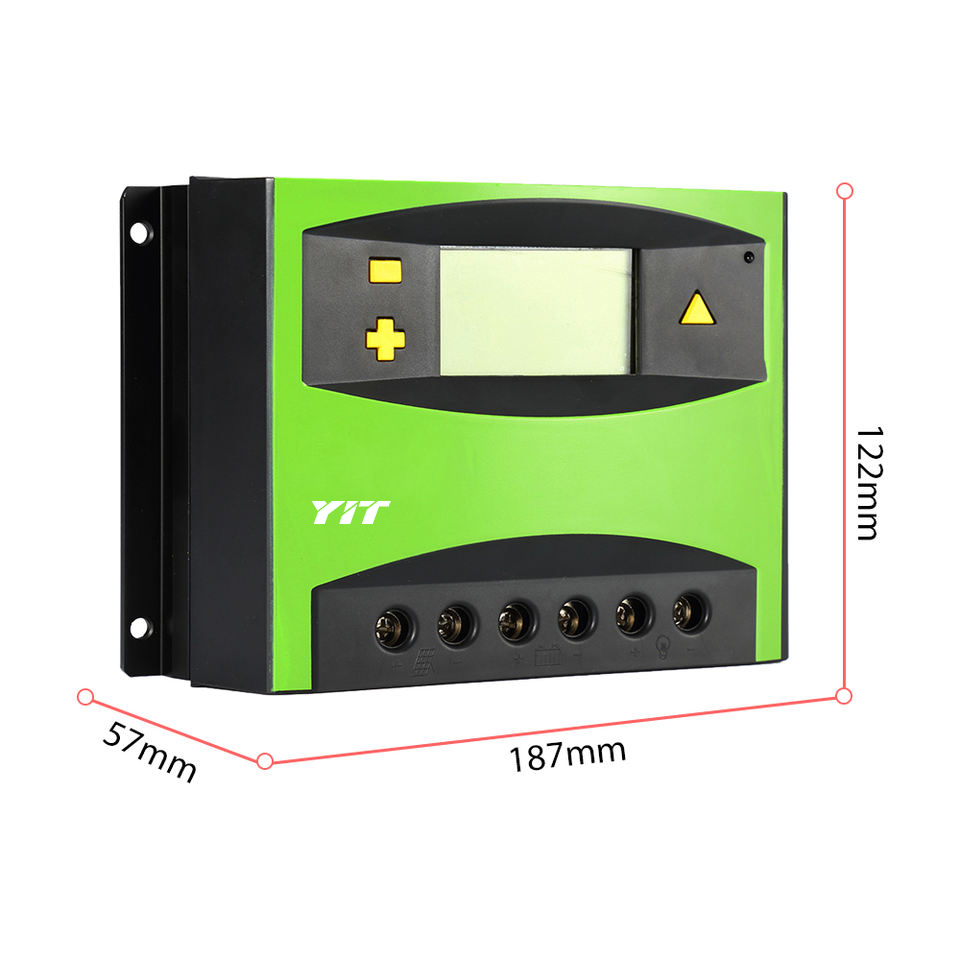

product size	20-30A(1879047mm)		40A(19510750mm) 5	50-60A(18712257mm)
package size	20010253mm		21011859mm	20013263mm
Net weight	320g		340g	588g
