Essential details
- Place of Origin:
Guangdong, China
- Brand Name:
YIT
- Model Number:
YIT50A
- Type:
MPPT
- Application:
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller
- Work Time (h):
All Day
- Max PV Power:
3200WP
- Max PV Voltage:
150VDC
- Certificate:
ISO9001
- Warranty:
1-Year
- Display:
HD LCD Backlight Display
- Charge mode:
MPPT Maximum Power Point Tracking
- OEM:
Accepted
- Product name:
Solar Charge Controller
- Protection:
Voltage Protection, Anti-Reverse Protection,
- Battery type:
Lead Acid Battery, Gel Battery,Customize
- MPPT Efficiency:
99%
- System voltage:
12v/24v/36v/48v Automatic Recognition
- Protection Function:
Reverse+short Circuit Protection
Supply Ability
- Supply Ability
- 10000 Piece/Pieces per Month
Packaging & delivery
- Packaging Details
styrofoam+carton
- Port
Guangzhou/Shenzhen
- Lead time:
| Quantity(boxes) | 1 - 10 | >10 |
| Lead time (days) | 5 | To be negotiated |
Three-stage smart charging
12V/24V/36V/48V adaptive
The maximum utilization rate of solar energy can reach 99%
With super fast charging algorithm, efficiency increased by 30%

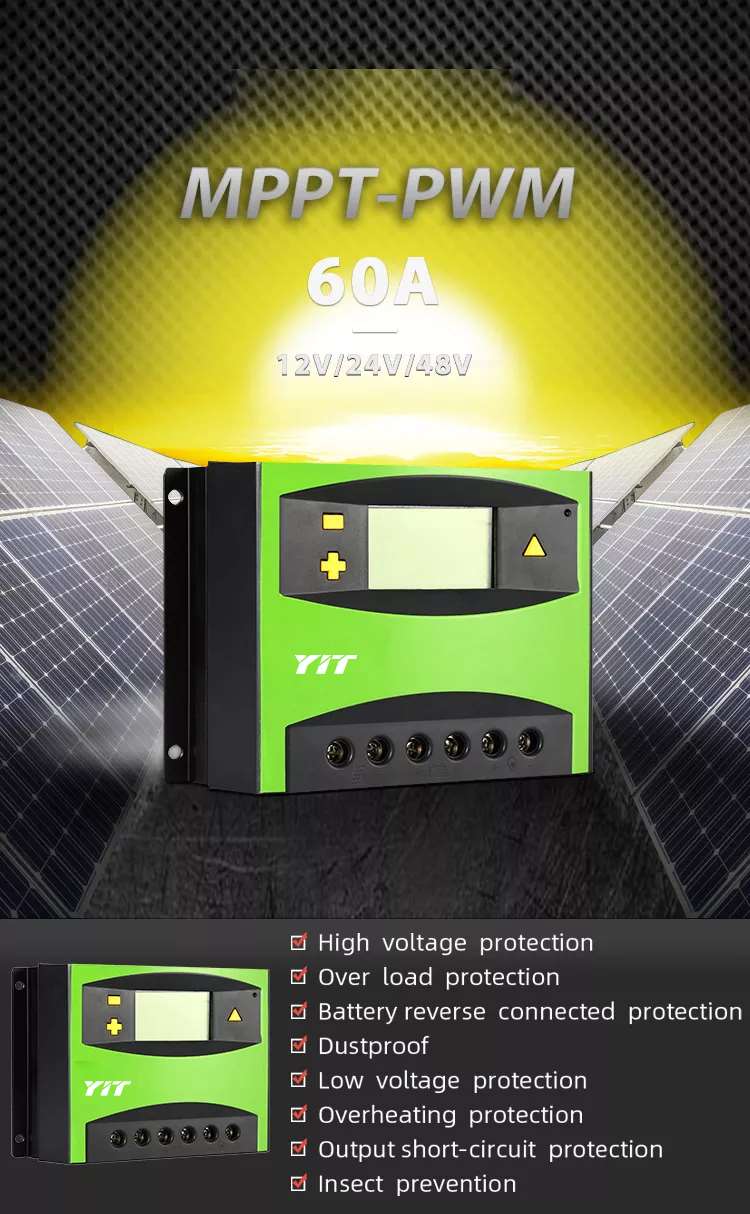

★High voltage protection
★Over load protection
★Battery reverse connected protection
★Dustproof
★Low voltage protection
★Overheating protection
★Output short-circuit protection
★Insect prevention
Product Parameters
model | 20A | 30A | 40A | 50A | 60A |
system voltage | 12V/24V(automatic switchover),or 48V |
The maximum voltage input to the solar panel | 50V(12V/24V),100V(48V) |
Loss of self | ≤13MA |
maximum charging current | 20A | 30A | 40A | 50A | 60A |
maximum discharge current | 20A | 30A | 40A | 50A | 60A |
LVD Low voltage protection voltage | 10.7V(10-13.8V),21.4V(20-27.6V),42.8V(40-55.2V) |
LVR Low voltage reset voltage | 12.6V(10.2-14V),25.2V(20.4-28V),50.4V(40.8-56V) |
floating charge voltage | 13.8V(13-15V),27.6V(26-30V),55.2V(52-60V) |
Battery overvoltage protection | 15V/30V/60V |
Input reverse connection protection | yes |
charging mode | PWM |
temperature compensation | -24mv/℃,-48mv/℃,-96mv/℃, relative to 12V/24V/48Vsystem |
operating temperature | -20℃-+55℃ |
Terminal scale | 28-10AWG |
waterproof rating | IP32 |

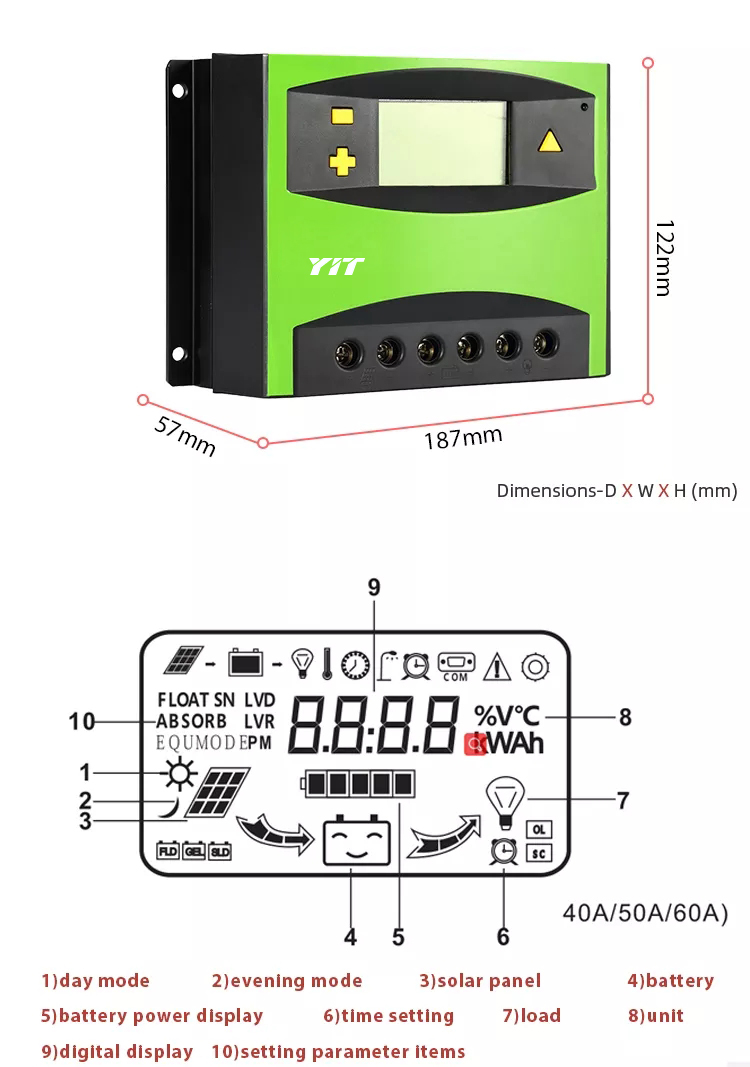

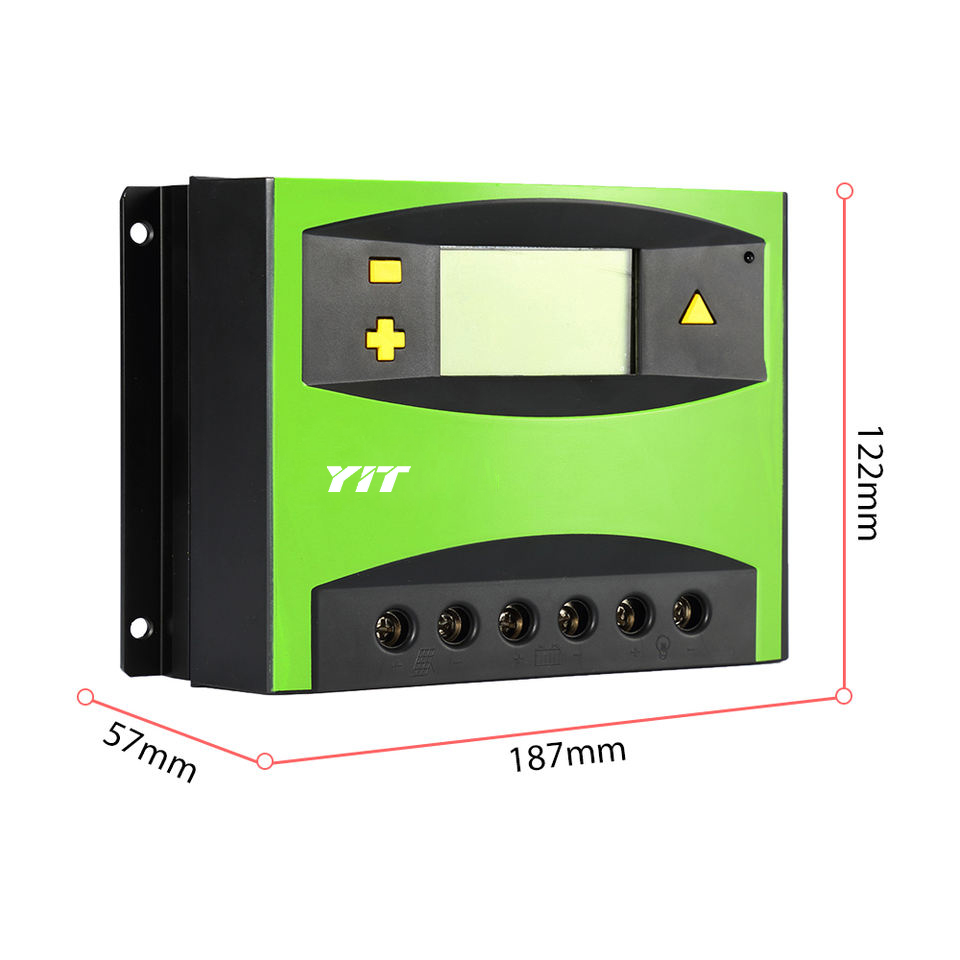

product size | 20-30A(187*90*47mm) | 40A(195*107*50mm) 5 | 50-60A(187*122*57mm) |
package size | 200*102*53mm | 210*118*59mm | 200*132*63mm |
Net weight | 320g | 340g | 588g |
