YIT 12V 12AH LiFePO4 Battery Pack High PerformanceSolar Energy Storage Systems-LITHIUM ION BATTERIES-Yitpower.cn: AGV Lithium Battery,Off-Grid Solar Batteries,Lithium Power Tool Batteries

Product Detail

Essential details

Warranty:: 1 Year

Anode Material:: LFP

Chargeable:: Yes

Application:: Toys, Power Tools, Home Appliances, electric vehicles, Solar Energy Storage Systems, Uninterruptible Power Supplies

Battery Size:: 32700

Brand Name:: YIT

Certification:: ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB

Model Number:: YIT-LF4020 12V 12Ah

Place of Origin:: Guangdong, China

Weight:: 1.4Kg

Storage Type:: The normal temperature

Product name:: 12.8V 12Ah LiFePo4 battery pack

Cell:: 4S2P 32700 cells

Case:: green plastic case

Energy:: 153.6Wh

Cycle life:: 2000 Cycles

Max.Charging Voltage:: 14.0~14.6V

Charging Current:: 6A

Max.Charging Current:: 12A

Terminal:: M5

Dimension(L*W*H*TH):: 151*99*96*97mm

Supply Ability

Supply Ability: 10000 Piece/Pieces per Week

Packaging & delivery

Packaging Details

Lead time:

Quantity(parcels)	1 - 10	>10
Lead time (days)	7	To be negotiated

Product Name	Maintenance free 12.8v 12ah lithium battery pack with ABS case
Material	lifepo4 battery cell prismatic battery cell
Function	storage battery instead of lead acid battrey
Package	one carton 10pcs battery pack

Electrical Characteristics	Nominal Voltage	12.8V
	Nominal Capacity	12Ah@0.2C
	Energy	153.6Wh
	Internal Resistance	≤70mΩ
	Cycle Life	2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
	Self Discharge	≤3.5% per month at 25℃
Standard Charging	Max.Charging Voltage	14.0~14.6V
	Charging Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
	Charging Current	6A
	Max.Charging Current	12A
Standard Discharging	Discharging Current	6A
	Max. Continuous Discharging Current	15A
	Max.Pulse Current	30A(<3S）
	Discharging Cut-off Voltage	10.0
Operating Condition	Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
	Storage Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Water Dust Resistance	IP55
Structure	Cell & Format	IFR32700 N65,4S2P
	Casing	Plastic
	Dimension(LWH*TH)	1519996*97mm
	Weight	Approx. 1.4Kg
	Terminal	M5

Advantage of lifepo4 battery:

Safety:LiFePO4 is the safest lithium-ion battery cathode material, not burning and explosion.
Environmental Protection:LiFePO4 does not contain any harmful heavy metal elements, pollution-free both in production and
actual use.
Easy Installation:Our screw in bolt ports allow for easy and secure connectivity. Plug and Play.
Long Cycle Life:Can be charged and discharged more than 2000 times @ 85% DOD, 5000 times @ 60% DOD
Light Weight:LiFePO4 battery is lighter and smaller than Lead-acid battery/ Gel battery.
Protection:LiFePO4 batteries built in BMS it has over charge, over discharge, over temp, short circuit protection.

12V 40ah LiFePO4 Battery with Prismatic cell + smart bms+ USB+ LCD display+ switch + copper m8 Terminal

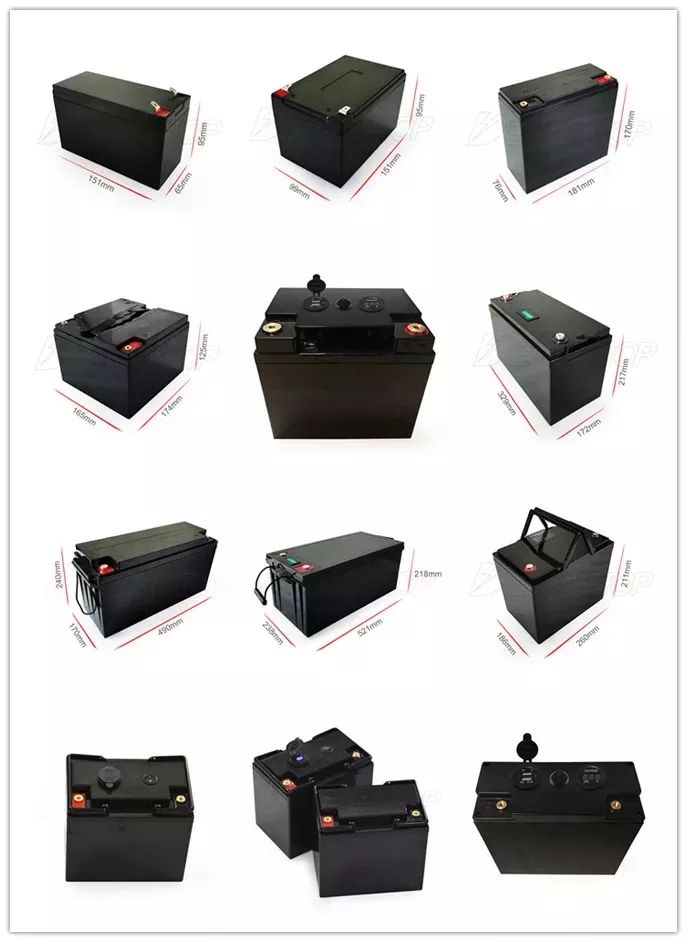

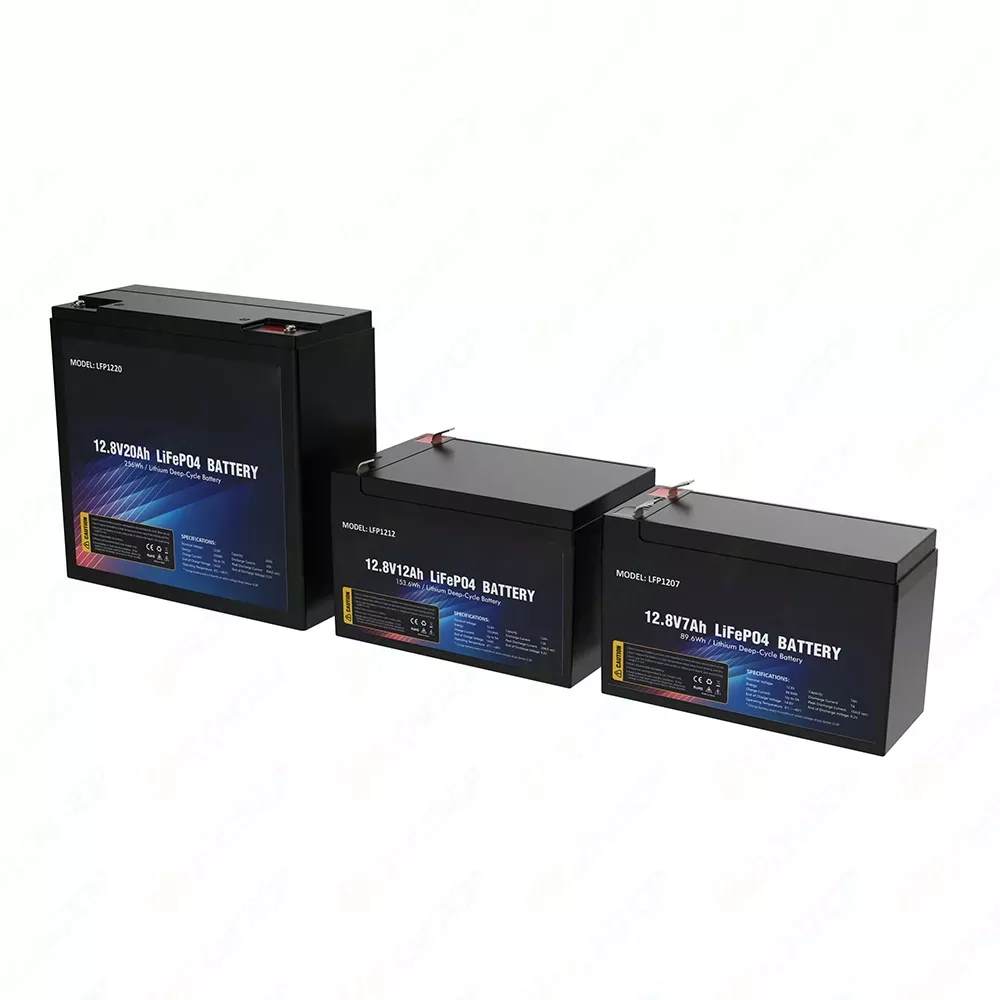

Other 12V Lifepo4 battery series: 12V 7ah- 600ah:

Voltage&Capacity	Maximum charge voltage	Discharge voltage	Cycle life	Dimension & weight
12V 7AH	14.6V	9.2V	≥3000 -8000	1516595MM 720G
12v 10AH	14.6V	9.2V	≥3000 -8000	1516595MM 1.2KG
12v 12AH	14.6V	9.2V	≥3000-8000	1519995MM 1.5KG
12V 20AH	14.6V	9.2V	≥3000-8000	18176170MM 2.2KG
12V 25AH	14.6V	9.2V	≥3000-8000	174165125MM 3KG
12V 30AH	14.6V	9.2V	≥3000-8000	182130195mm 3.8KG
12V 40AH	14.6V	9.2V	≥3000-8000	195132170MM 4.2KG
12V 50AH	14.6V	9.2V	≥3000-8000	260168211MM 5.5KG
12V 75AH	14.6V	9.2V	≥3000-8000	260168211MM 7.5KG
12V 100AH	14.6V	9.2V	≥3000-8000	329172217MM 11KG
12V 120AH	14.6V	9.2V	≥3000-8000	329172217MM 13KG
12V 150AH	14.6V	9.2V	≥3000-8000	490170240MM 15KG
12V 200AH	14.6V	9.2V	≥3000-8000	521238218MM 24KG
12V 300AH	14.6V	9.2V	≥3000-8000	520320175mm 40KG
12V 400AH	14.6V	9.2V	≥3000-8000	4503601750mm 45KG
