Product Detail

Essential details

Place of Origin:: guangdong, China

Brand Name:: Growatt

Model Number:: MOD 12KTL3-X

Input Voltage:: 580V

Output Voltage:: 220V/380V, 230V/400V (340-440V)

Output Current:: 20A

Output Frequency:: 50Hz/ 60Hz

Output Type:: Three Phase

Size:: 425/387/178mm

Type:: DC/AC Inverters

Inverter Efficiency:: 98.2%

Certificate:: CE, VDE0126, Greece, EN50549

Warranty:: 5 years/10 years

Weight:: 16kg

MPPT voltage range:: 140V-1000V

Display:: OLED+LED/WIFI+APP

Interfaces: USB/RS485/WIFI /GPRS//LAN/RF:: yes/yes/Optional/Optional/Optional/Optional

Max PV power (for module STC):: 18000W

Supply Ability

Supply Ability: 5000 Piece/Pieces per Month

Packaging & delivery

Packaging Details

Port

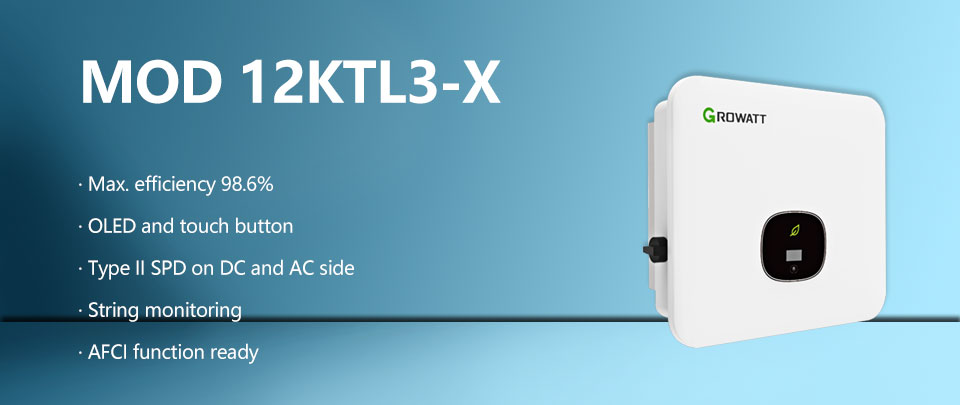

MOD 12KTL3-X.jpg

Datasheet	MOD 10KTL3-X	MOD 11KTL3-X	MOD 12KTL3-X	MOD 13KTL3-X	MOD 15KTL3-X
Input data (DC)
Max. recommended PV power (for module STC)	15000W	16500W	18000W	19500W	22500W
Max DC voltage	1100V
Start voltage	160V
Nominal voltage	580V
MPPT voltage range	140V-1000V
No. of MPP trackers	2
No. of PV strings per MPP tracker	1	1	1/2	1/2	1/2
Max. input current per MPP tracker	13A	13A	13/26A	13/26A	13/26A
Max. short-circuit current per MPP tracker	16A	16A	16/32A	16/32A	16/32A
Output data(AC)
AC nominal power	10000W	11000W	12000W	13000W	15000W
Max. AC apparent power	11000VA*	12100VA	13200VA	14300VA	16500VA
Nominal AC voltage（range*）	220V/380V, 230V/400V (340-440V)
AC grid frequency（range*）	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	16.7A	18.3A	20A	21.7A	25A
Adjustable power factor	0.8leading…0.8lagging
THDI	<3%
AC grid connection type	3W+N+PE
Efficiency
MAX. efficiency	98.6%
European efficiency	98.1%	98.1%	98.2%	98.2%	98.2%
MPPT efficiency	99.9%
Protection devices
DC reverse polarity protection	Yes
DC Switch	Yes
AC/DC surge protection	Type II/Type II
Insulation resistance monitoring	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Residual-current monitoring unit	Yes
String fault monitoring	Yes
AFCI protection	Optional
General data
Dimensions(W / H / D)	425/387/178mm
Weight	14kg	14kg	16kg	16kg	16kg
Operating temperature range	–25°C ... +60°C
Nighttime power consumption	<1W
Topology	Transformerless
Cooling	Natural convection
Protection degree	IP66
Relative humidity	0~100%
Altitude	4000m
DC connection	H4 / MC4 (Optional )
AC connection	Connector
Display	OLED+LED/WIFI+APP
Interfaces: USB/RS485/WIFI/GPRS/ LAN/RF	Yes/Yes/Optional/Optional/Optional/Optional
Warranty: 5 / 10 years	Yes/Optional
