Overview
Essential details
- Place of Origin:
Guangdong, China
- Brand Name:
YIT
- Model Number:
GA5048MHB
- Input Voltage:
208/220/230/240VAC
- Output Voltage:
208/220/230/240VAC±5%
- Output Current:
80A
- Output Frequency:
50/60Hz±0.1%
- Output Type:
Single
- Size:
512*320*136 mm
- Type:
DC/AC Inverters
- Inverter Efficiency:
99.5%
- Certificate:
EN-IEC 60335-1
- Warranty:
1 YEARS
- Weight:
12KG
- Product name:

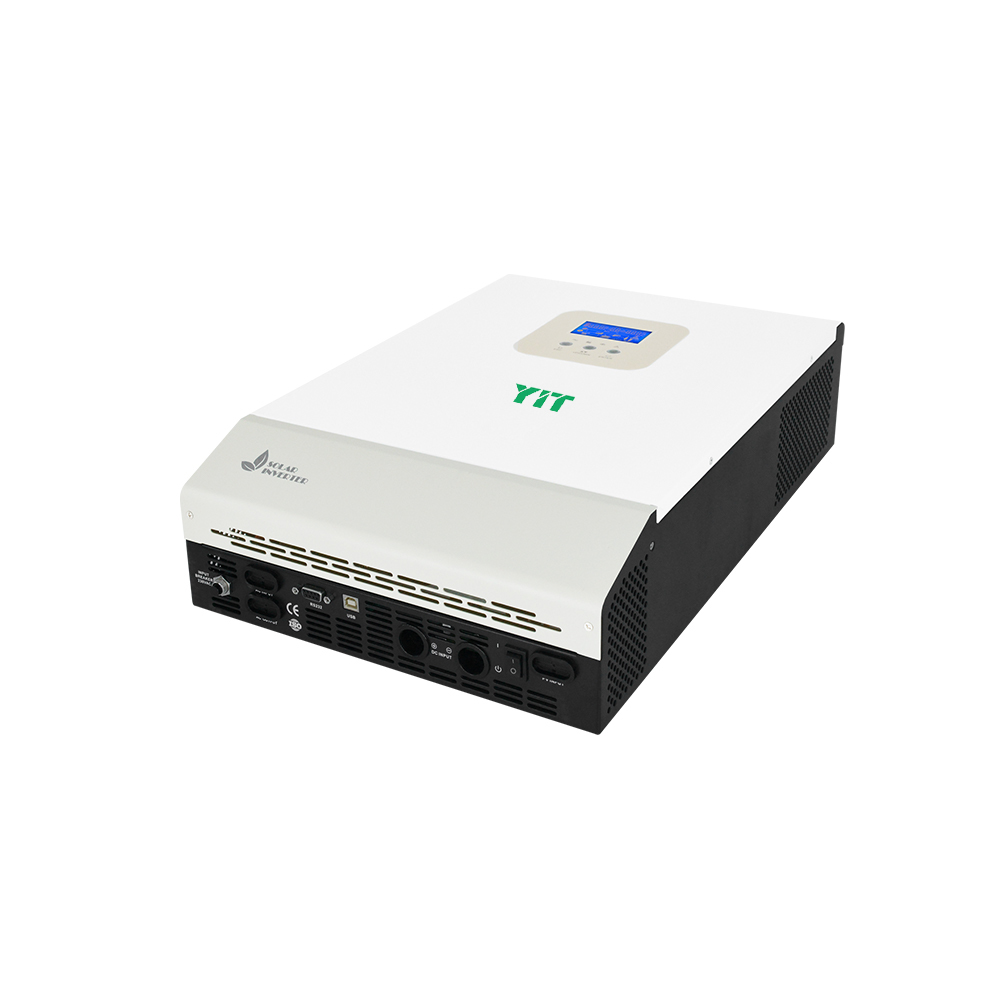

3000W 5000W 48V 220VAC Off Grid Hybrid High Frequency Solar Inverter
- Application:
Solar Power System Home

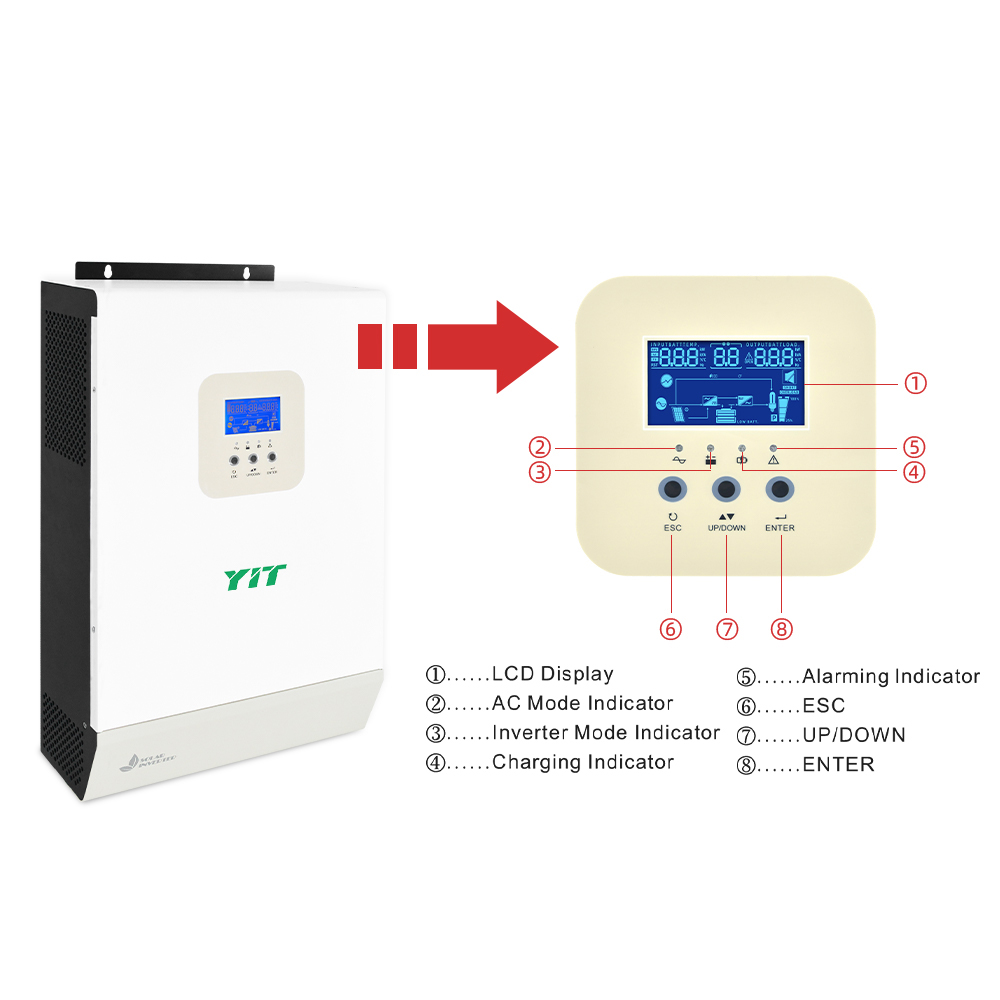

- Display:
LCD Display
- Protection:
Short Circuit Protection
- Color:
White
- Solar charge controller current:
80A
- Output waveform:
Prue Sine Wave
- Max PV input voltage:
450Vdc
- Frequency:
50/60HZ
- OEM:
Accepted
Supply Ability
- Supply Ability
- 10000 Piece/Pieces per Month
Packaging & delivery

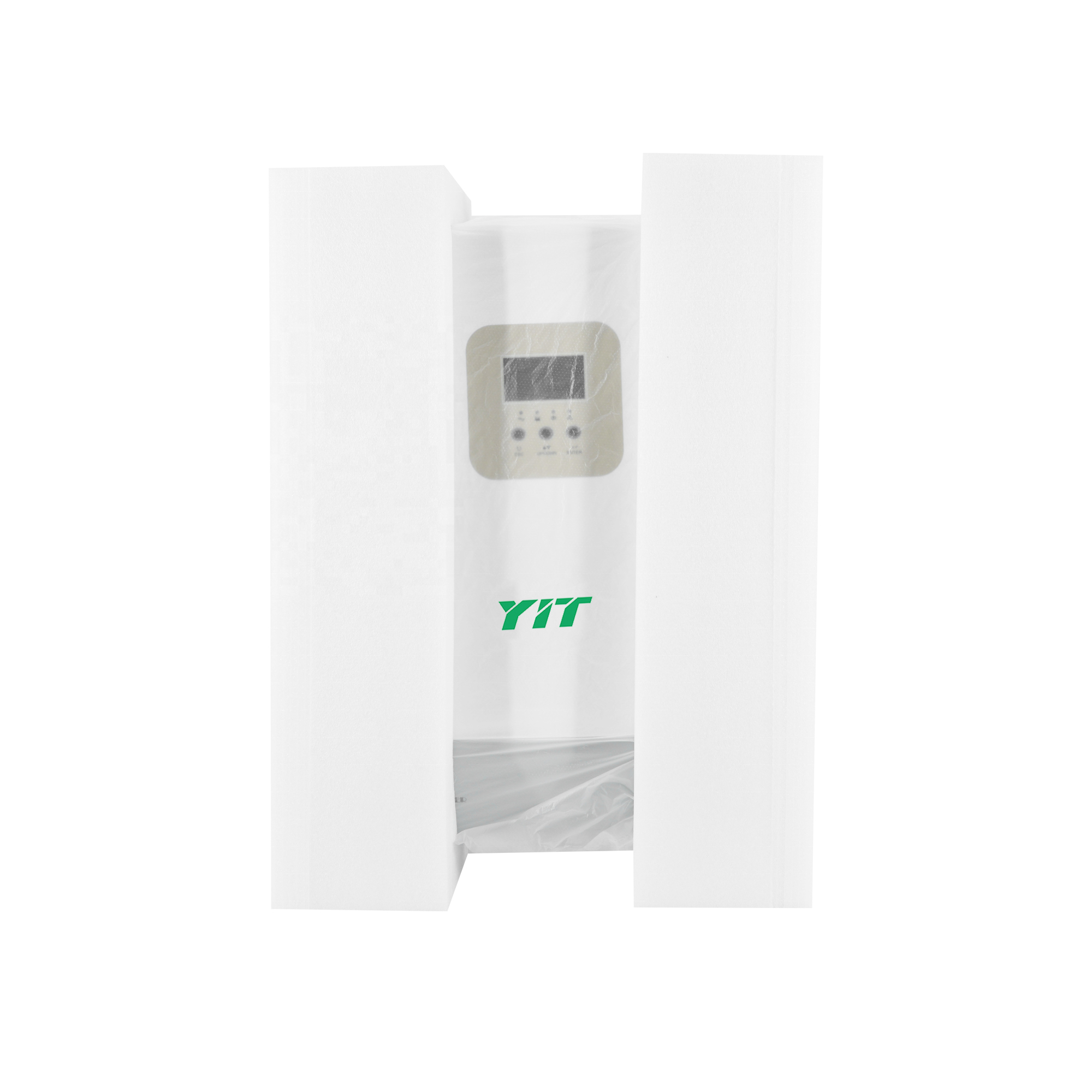

- Packaging Details
styrofoam+carton
- Port
Guangzhou/Shenzhen
- Lead time:
| Quantity(parcels) | 1 - 100 | >100 |
| Lead time (days) | 25 | To be negotiated |
20 YEARS industrial experience with There are multiplei production bases in China . Owns advanced equipment and instruments and
builds Automatic production line,
Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other
CERTIFICATIONS.
Output power factor PF=1
Lithium Battery Activation Start Function

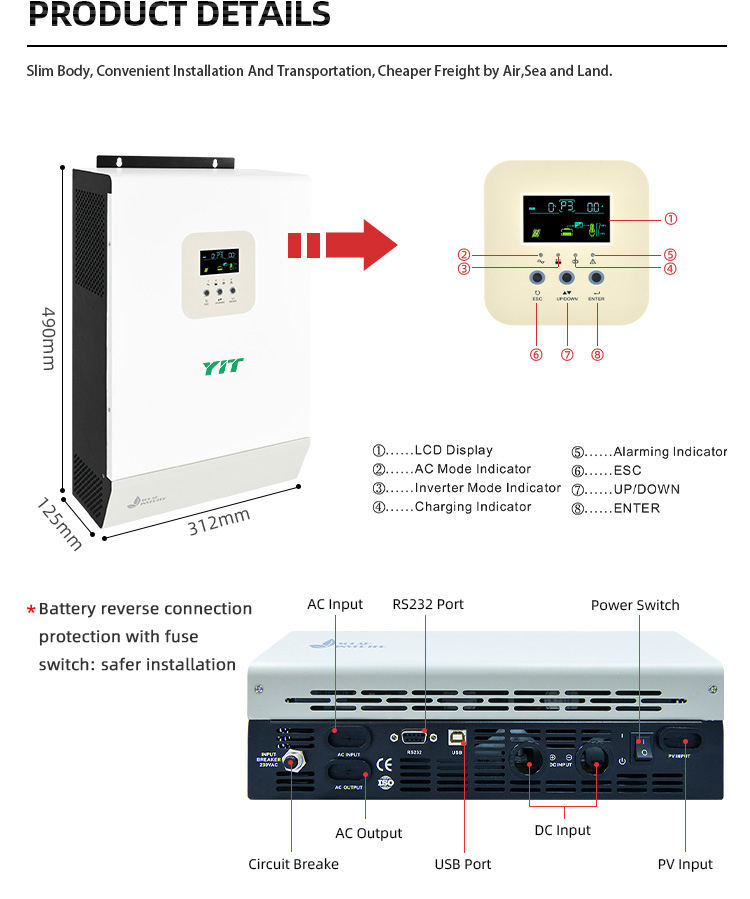

Features
Pure sine wave Built-in MPPT solar charge controlller Configurable solar input voltage up to 500V Maximum Configurable input
voltage range for home appliances and personal computers via LCD setting Configurable battery charging current based on
applications via LCD setting Configurable AC/Solar Charger priority via LCD setting Compatible to mains voltage or generator power
Auto restart while AC or Solar is recovering Capable working without battery connection Capable suppling power to AC output with
solar and utility at same time Capable suppling AC output with solar input only Overload/ Over temperature/ short circuit
protection Cold start function Parallel operation with up to 12 units only available for 5KVA model
Model | IVEM5048 | IVEM3024 |
DC Input Voltage | 48V | 24V |
Rated output power(VA) | 5000VA | 3000VA |
Rated output power(W) | 5000W | 3000W |
Rated output power(W) | 5000W | 3000W |
Input voltage waveform | Sine(public facility or generator) |
Rated input voltage | 230vac | 230vac |
Grid low voltage | 90Vac±7Vac | 90Vac±7Vac |
Grid low voltagerecovery voltage | 100Vac±7Vac | 100Vac±7Vac |
Grid high voltage | 280Vac±7Vac | 280Vac±7Vac |
Grid high voltage recovery voltage | 270Vac±7Vac | 270Vac±7Vac |
Max input voltage | 280Vrms | 280Vrms |
Rated input frequency | 50Hz/60Hz(Auto detection) |
Grid underfrequency | |
Grid underfrequency recovery | |
Grid overfrequency | |
Grid overfrequency recovery | |
Nominal input frequency | Sinusoidal(Utility or generator) |
Output waveform | Synchronize with input voltage |
Overload protection | |
Output short circuit protection | |
Efficiency(grid) | |
Switching time(AC TO DC) | |
Switching time(DC TO AC) | 15ms Typical value/30ms special value |
Through battery free | |
Max Bypass Overload Current | 40A | 30A |
Breaker size | Dependent on battery type or self-defined |
Overcharge protection | |
MPPT Charging&Grid Charging(MPPT built-in controller is option) |
Max PV open circuit voltage | 500V | 500V |
PV voltage working range | 120V~500V | 120V~500V |
Max input power | 6000W | 4000W |
Max mains charging current | 100A | 100A |
Max charging current(mains+solar energy) | 100A | 100A |
