Overview
Essential details
- Place of Origin:
Guangdong, China
- Brand Name:
YIT
- Model Number:
GA3024MH
- Input Voltage:
208/220/230/240VAC
- Output Voltage:
208/220/230/240VAC±5%
- Output Current:
60A
- Output Frequency:
50/60Hz±0.1%
- Output Type:
Single
- Size:
512*320*136 mm
- Type:
DC/AC Inverters
- Inverter Efficiency:
99.5%
- Certificate:
EN-IEC 60335-1
- Warranty:
1 YEARS
- Weight:
12KG
- Product name:
Hybrid Solar Inverter

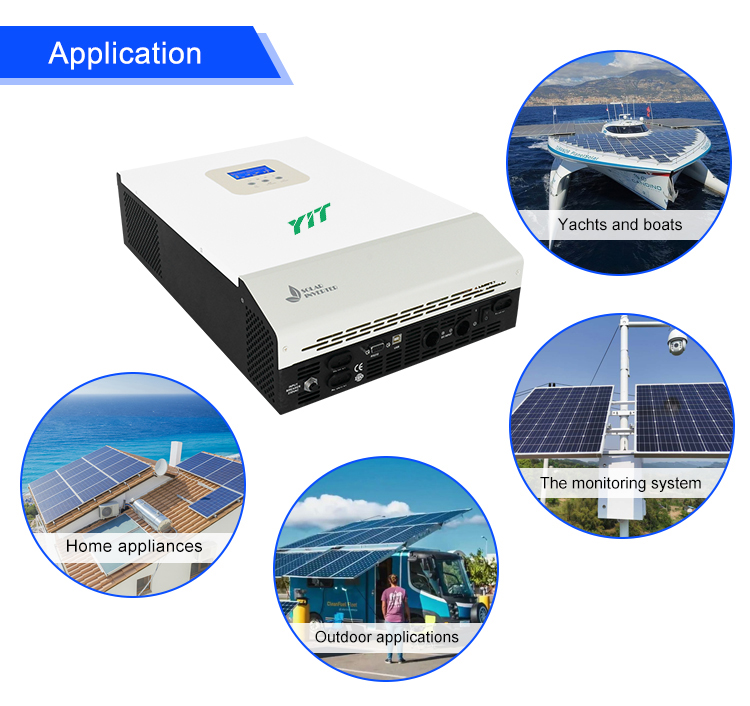

- Application:
Solar Power System Home
- Display:
LCD Display
- Protection:
Short Circuit Protection
- Color:
White
- Output waveform:
Prue Sine Wave
- Max PV input voltage:
450Vdc
- Frequency:
50/60HZ
- OEM:
Accepted
Supply Ability
- Supply Ability
- 10000 Piece/Pieces per Month
Packaging & delivery
- Packaging Details
styrofoam+carton
- Port
Guangzhou/Shenzhen
- Lead time:
| Quantity(perches) | 1 - 100 | >100 |
| Lead time (days) | 25 | To be negotiated |
20 YEARS industrial experience with There are multiplei production bases in China . Owns advanced equipment and instruments and
builds Automatic production line,
Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other
CERTIFICATIONS.

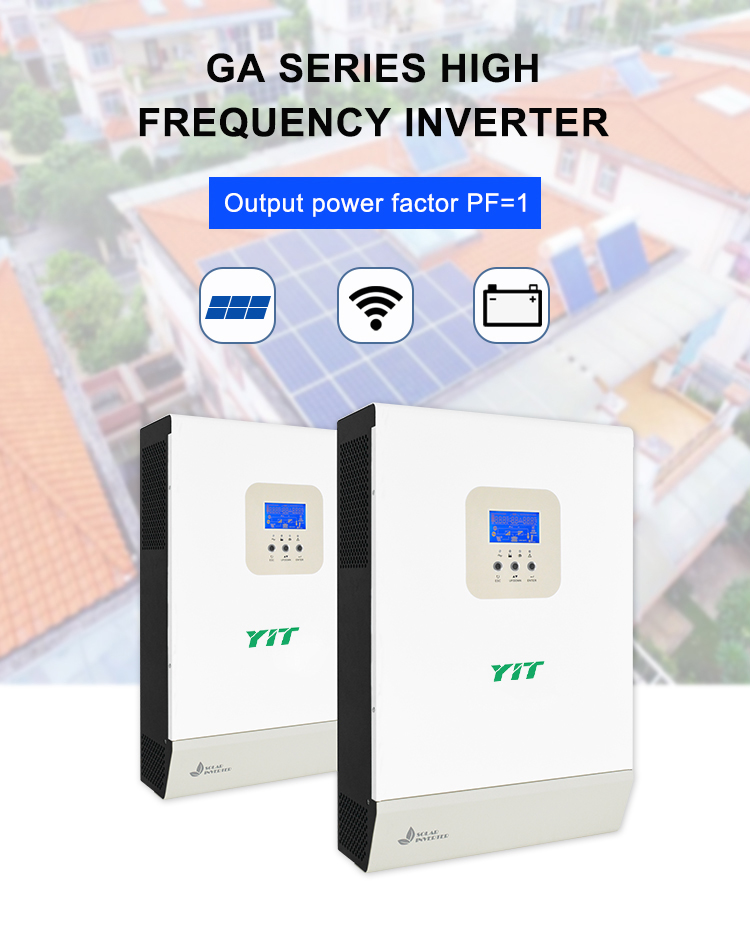

Output power factor PF=1
Lithium Battery Activation Start Function
Product Parameters
Model | GA3024MH | GA5048MH | GA5048MHB |
| Phase | L+N+PE |
Nominal Voltage | 208/220/230/240VAC |
Voltage Range | 154-264VAC±3V（Normal Mode) 185-264VAC±3V（UPS Mode） |
Frequency Range | 50Hz/60Hz(Adaptive) |

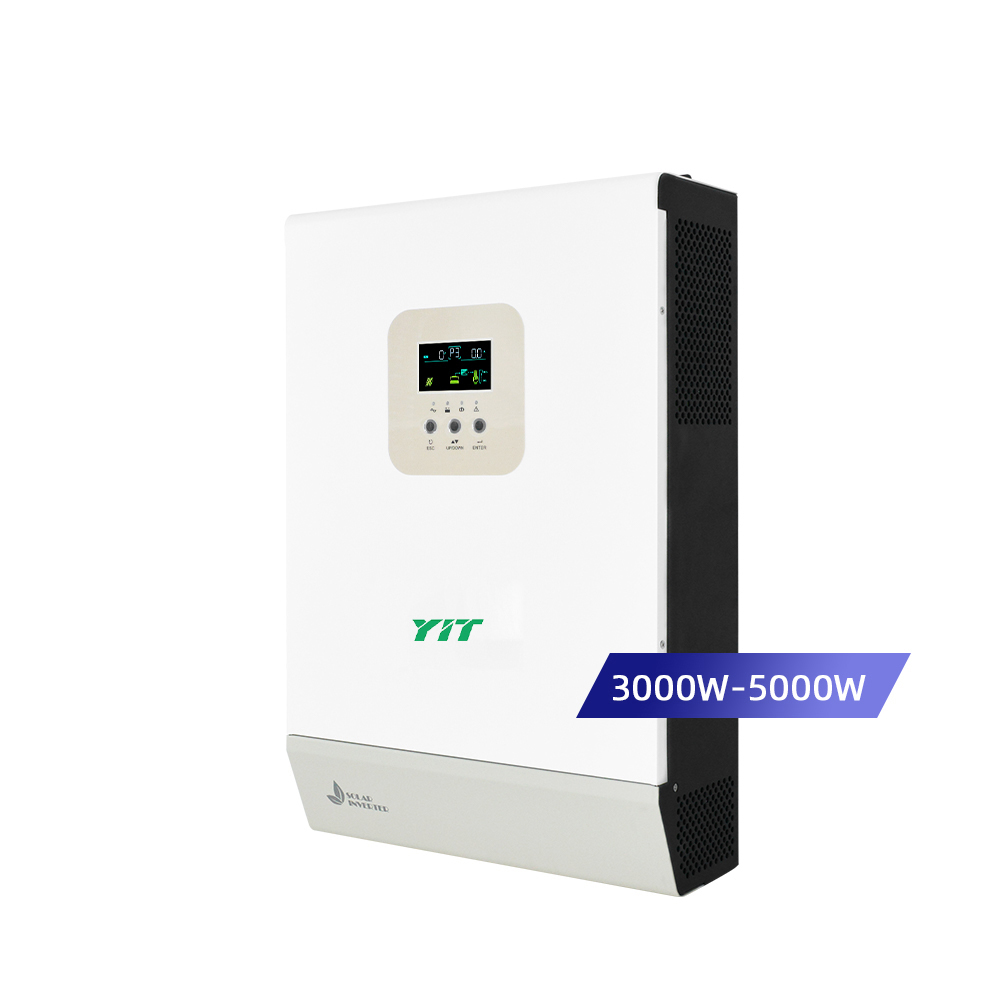

| Rated Power | 3000W | 5000W | 5000W |
Output Voltage(AC) | 208/220/230/240VAC±5% |
Output Frequency | 50/60Hz±0.1% |
Waveform | Pure sine wave |
Transfer Time( Optional) | 10ms for computer , 20ms for home appliances |
Peak power | 6000VA | 10000VA | 10000VA |
Overload | Battery Mode： |
1min@102%~110% Load |
10s@110%~130% Load |
3s@130%~150% Load |
200ms@>150% Load |
Peak efficiency (battery mode) | >94% | >94% | >94% |
| Rated voltage | 24Vdc | 48Vdc | 48Vdc |
Constant voltage charging voltage (Optional) | 28.2Vdc | 56.4Vdc | 56.4Vdc |
Floating charge voltage (Optional) | 27Vdc | 54Vdc | 54Vdc |

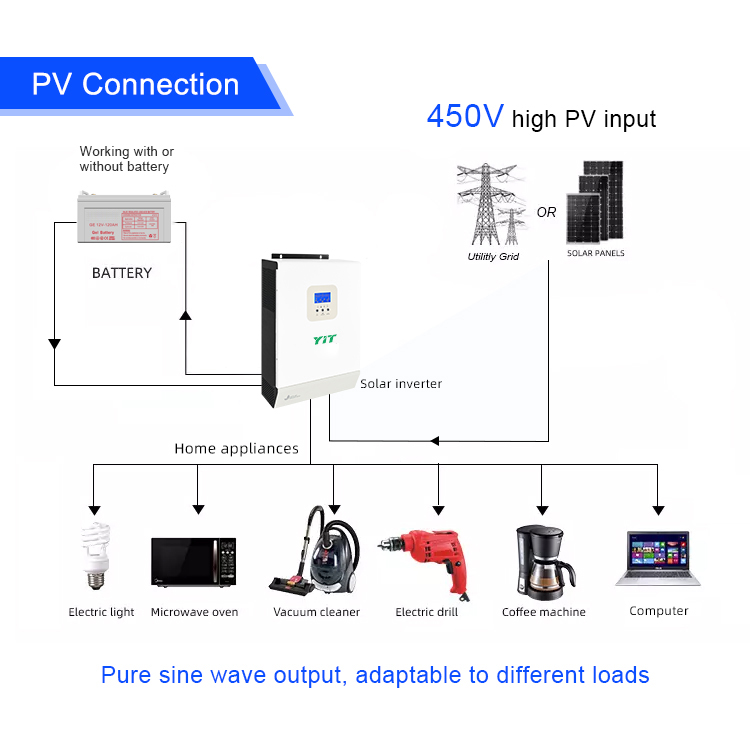

| PV charging method | MPPT | MPPT | MPPT |
PV max input power | 3500W | 5500W | 5500W |
MPPT tracking range | 120-430Vdc | 120~430Vdc | 120~430Vdc |
Max PV input voltage | 450Vdc | 450Vdc | 450Vdc |
Max PV charging current | 120A | 100A | 100A |
Max AC charging current | 120A | 100A | 100A |
Max charging current | 120A | 100A | 100A |

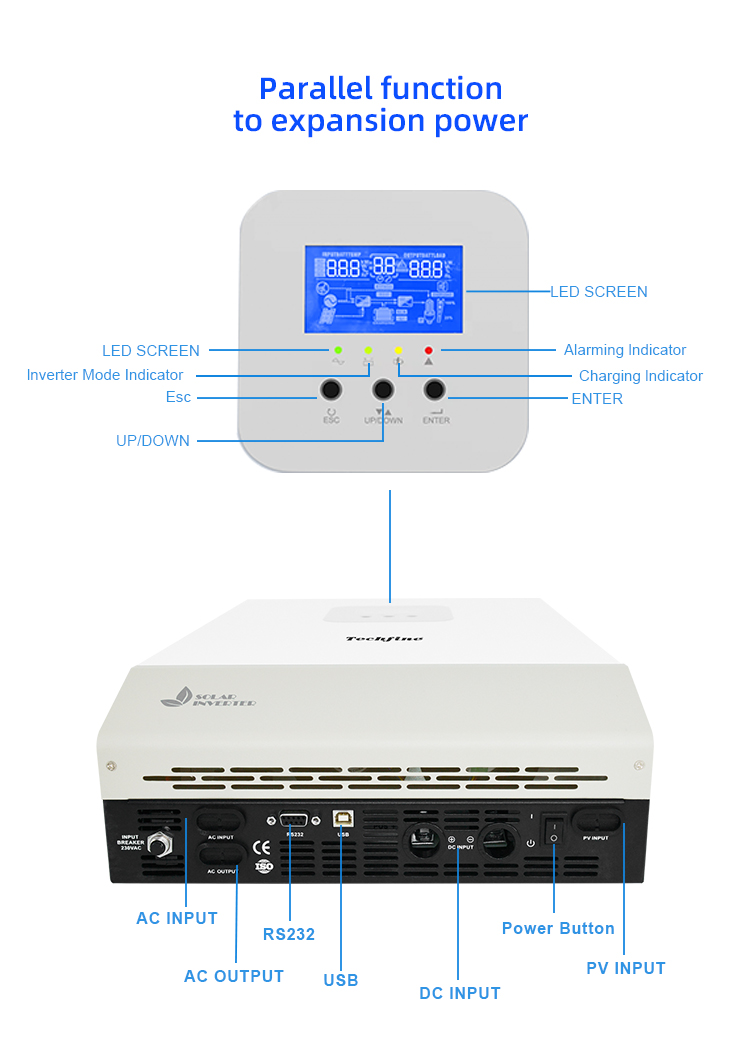

| LCD display | Operating mode/load/input/output, etc. |
| RS232 | 5PIN/Pitch2.0mm, baud rate 2400 |
Expansion & configuration port | 2×5PIN/Pitch2.54mm, lithium battery BMS communication card, |
WIFI card, dry contact card, etc. |
Parallel interface | No | No | Yes |
|
|
|
|
|
| Operating environment temperature | 0~40℃ |
Operating environment humidity | 20%~95%（Non condensing） |
Storage temperature | -15~60℃ |
Altitude | The altitude should not exceed 1000m, derating above 1000m, |
up to 4000m, refer to IEC62040 |
noise | ≤50db |
Certifications | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 |
