Product Detail

Essential details

Warranty:: 1 YEAR

Place of Origin:: Guangdong, China

Brand Name:: YIT

Model Number:: Q1200VA

Phase:: Single Phase

Protection:: Overvoltage

Weight:: 8.8

Type:: STANDBY

Application:: Medical

Model:: Q1200VA

Capacity:: 1200VA /720W

Power factor:: 0.6

Frequency Range:: 50 Hz ±1 Hz

Input voltage:: 145-280 VAC

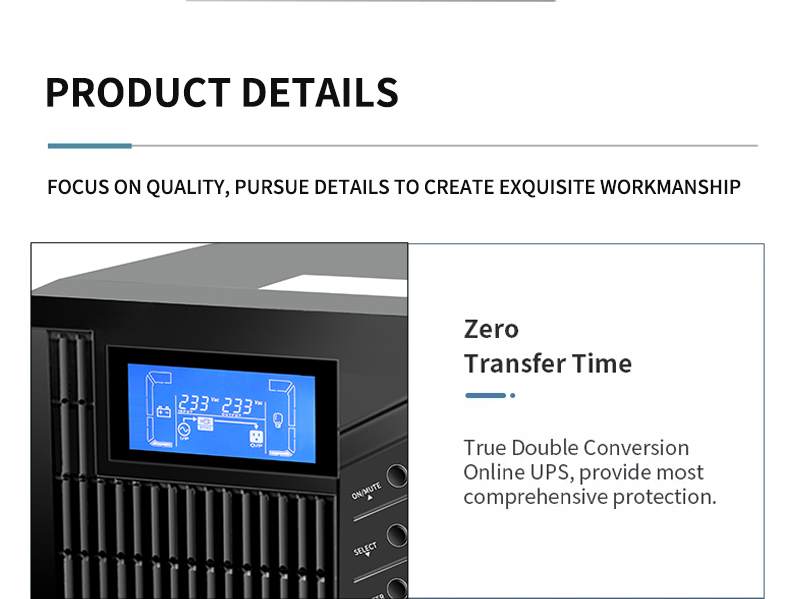

Display:: LCD Display

Rated power:: 720W

Efficiency:: >98%

Transfer time:: <6ms

Supply Ability

Supply Ability: 10000 Piece/Pieces per Month

Packaging & delivery

Packaging Details

Port

Lead time:

Quantity(parcels)	1 - 1	>1
Lead time (days)	5	To be negotiated

Our Advantages

❤20 YEARS industrial experience with three production bases in China . Owns advanced equipment and instruments and
builds Automatic production line.

❤Automatic equipment production: stan dardizied quality、high efficiency production.

❤High Tracking Efficiency Up To 99%，12V/24V/36V/48V DC Voltage adaptive
❤Battery Reverse Connect Protection，10V to 11.5V cut off point setting

❤ Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and otherCERTIFICATIONS.






Model	650VA	800VA	1000VA	1200VA	1500VA	2000VA
Capacity	650VA /360W	800VA/480W	1000VA/600W	1200VA/720W	1500VA /900W	2000VA /1200W
Input
Voltage	220VAC
AC Mains Input Voltage Range	145-280 VAC (same as AC mains)
Frequency	50 Hz
Output
Voltage Range(Battery Mode)	±10%
Frequency Range(Battery Mode)	50 Hz ±1 Hz
Transfer Time	＜6ms
Waveform(Battery)	Modified sine wave
Battery
Battery Type & Quantity	12V7.2Ah x 1	12V 9Ah x 1	12V 7.2Ah x 2	12V 7.2Ah x 2	12V 9Ah x 2	12V 9Ah x 2
Battery Charging Tiime	6 hours charge to 90%
LED Indicators
AC Mode	Green light
Battery Mode	Red light flash
Audible Alarm
Battery Mode	Alarm beeps every six seconds
Low Battery	Alarm beeps every second
Overload	Alarm beeps twice every second
Fault	Alarm beeps continuously
Protection Function
Comprehensive Protection	Overload, deep discharge and over-charge protection
Environment
Temperature And Humidity	Relative humidity 0-90% and temperature 0- 40°C (No-condensing)
Noise	less than 40dB at one meter distance
Physical Function
Dimensions (mm)	33587143	33587143	312122195	312122195	360122195	360122195
Net Weight (kgs)	4.6	5	8.8	8.8	11.7	13.1
