Essential details
- Warranty:
1 year
- Place of Origin:
Guangdong, China
- Brand Name:
YIT/OEM
- Model Number:
YIT650VA
- Phase:
Single Phase
- Protection:
Overload
- Weight:
5.36KG
- Type:
Line Interactive
- Application:
Security / Monitoring / Alarm
- Product name:
Line Interactive UPS
- Battery Type:
Lead Acid Battery
- Capacity:
650VA/360W
- Wave Form:
Modified Sine Wave
- Transfer time:
2-6ms
- Frequency:
0.6
- Display:
LCD
- Backup time:
10min-15min
- Certification:
ISO9001/ISO14001/CE/ROHS
Supply Ability
- Supply Ability
- 10000 Piece/Pieces per Month
Packaging & delivery
- Packaging Details
Products are Packing with Stable Cartoon
All equipment and products provided shall be packing with strong packaging suitable for ocean and inland transportation, multiple handling, loading and unloading; and the packaging shall be provided with vibration reduction and shock resistance measures to ensure that they are intact during transportation and loading and unloading.
- Port
Any port of China
- Lead time:
| Quantity(boxes) | 1 - 1000 | >1000 |
| Lead time (days) | 10 | To be negotiated |
Our Advantages
❤20 YEARS industrial experience with three production bases in China . Owns advanced equipment and instruments and
builds Automatic production line.
❤Automatic equipment production: stan dardizied quality、high efficiency production.
❤High Tracking Efficiency Up To 99%，12V/24V/36V/48V DC Voltage adaptive
❤Battery Reverse Connect Protection，10V to 11.5V cut off point setting
❤ Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and otherCERTIFICATIONS.
Product Paramenters
Model | 650VA | 800VA | 1200VA | 1500VA | 2000VA |
Capacity | 650VA /360W | 800VA/480W | 1200VA/720W | 1500VA /900W | 2000VA /1200W |
Input |
|
Voltage | 220VAC |
AC Mains Input Voltage Range | 145-280 VAC (same as AC mains) |
Frequency | 50 Hz |
Output |
|
Voltage Range(Battery Mode) | ±10% |
Frequency Range(Battery Mode) | 50 Hz ±1 Hz |
Transfer Time | ＜6ms |
Waveform(Battery) | Modified sine wave |
Battery |
|
Battery Type & Quantity | 12V7.2Ah x 1 | 12V 9Ah x 1 | 12V 7.2Ah x 2 | 12V 9Ah x 2 | 12V 9Ah x 2 |
Battery Charging Tiime | 6 hours charge to 90% |
LED Indicators |
|
AC Mode | Green light |
Battery Mode | Red light flash |
Audible Alarm |
|
Battery Mode | Alarm beeps every six seconds |
Low Battery | Alarm beeps every second |
Overload | Alarm beeps twice every second |
Fault | Alarm beeps continuously |
Protection Function |
|
Comprehensive Protection | Overload, deep discharge and over-charge protection |
Environment |
|
Temperature And Humidity | Relative humidity 0-90% and temperature 0- 40°C (No-condensing) |
Noise | less than 40dB at one meter distance |
Physical Function |
|

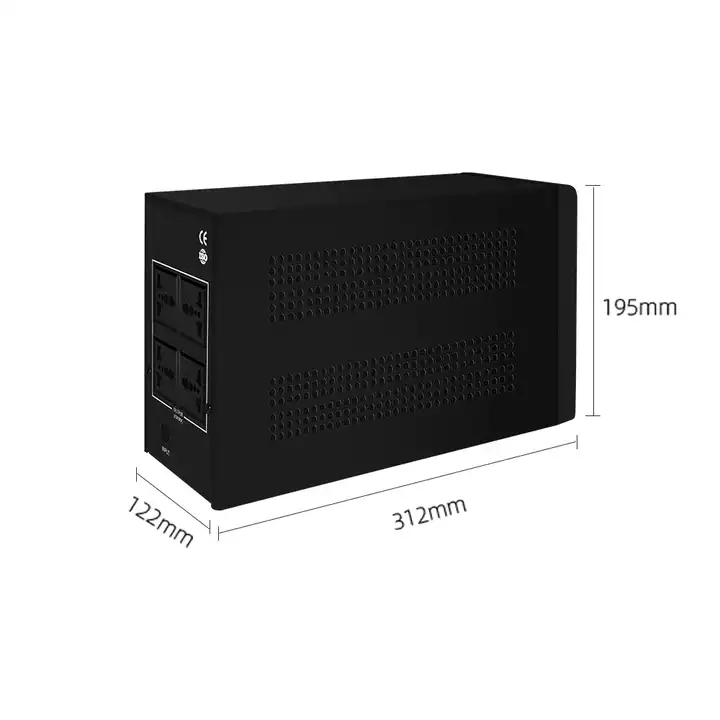

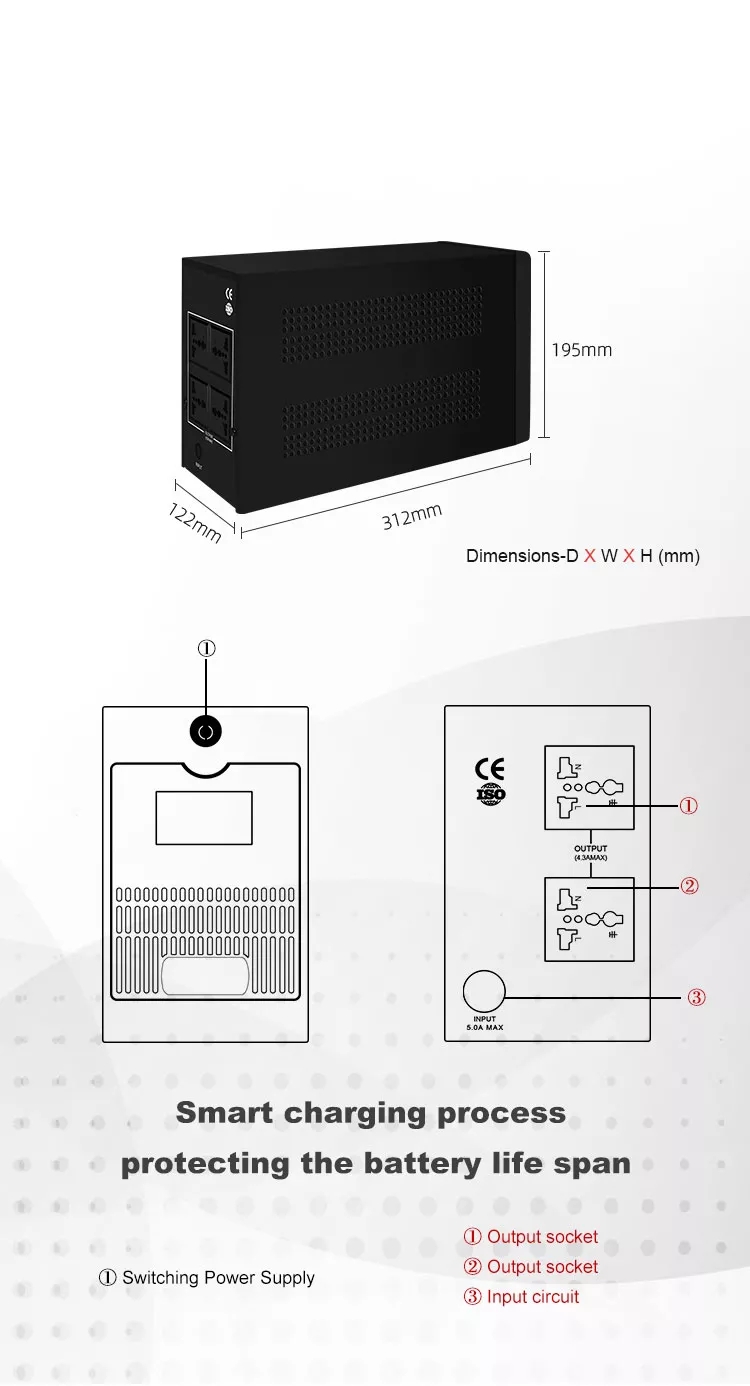

Dimensions (mm) | 335*87*143 | 335*87*143 | 312*122*195 | 360*122*195 | 360*122*195 |
Net Weight (kgs) | 4.6 | 5 | 8.8 | 11.7 | 13.1 |
