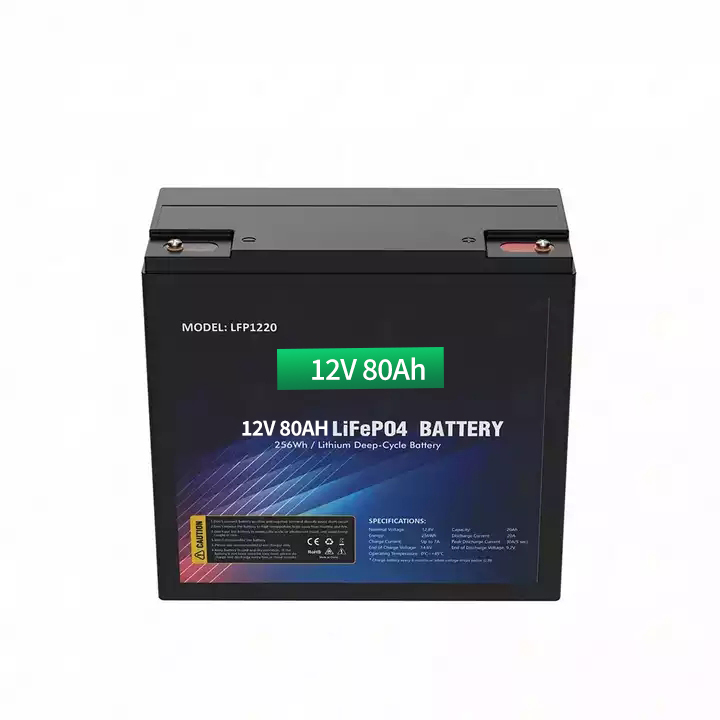

12.8V 80Ah 12V LiFePO4 Lithium Battery Factory Price Rechargeable Battery-LITHIUM ION BATTERIES-Yitpower.cn: AGV Lithium Battery,Off-Grid Solar Batteries,Lithium Power Tool Batteries

Product Detail

Essential details

Warranty:: 3years

Anode Material:: LFP

Chargeable:: Yes

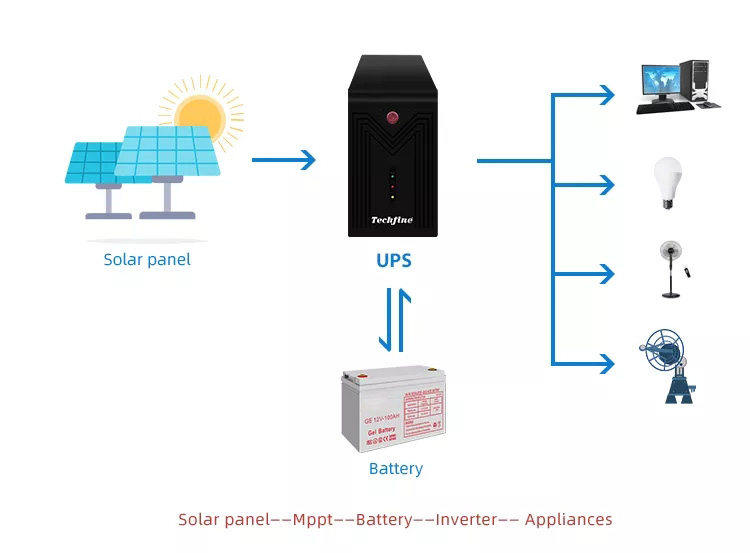

Application:: Solar Energy Storage Systems

Battery Size:: 4S14P 32700

Brand Name:: YIT

Certification:: ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB

Model Number:: 12V 80Ah

Place of Origin:: Guangdong, China

Weight:: Approx. 9.8Kg

The charging ratio:: 40A

The discharge rate:: 100A

Nominal Voltage:: 12.8V

Nominal Capacity:: 80Ah

Energy:: 1024Wh

Internal Resistance:: ≤50mΩ

Cycle Life:: 2000+ Cycles

Max.Charging Voltage:: 14.0~14.6V

Water Dust Resistance:: IP55

Casing:: Plastic

Dimension(L*W*H*TH):: 328*172*216*216mm

Terminal:: M8

Supply Ability

Supply Ability: 100000 Piece/Pieces per Month

Packaging & delivery

Packaging Details

Port

Lead time:

Quantity(pieces)	1 - 500	501 - 1000	>1000
Lead time (days)	7	15	To be negotiated

Electrical Characteristics	Nominal Voltage	12.8V
	Nominal Capacity	80Ah@0.2C
	Energy	1024Wh
	Internal Resistance	≤50mΩ
	Cycle Life	2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
		≤3.5% per month at 25℃
Operating Condition	Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
	Storage Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Water Dust Resistance	IP55
Structure	Cell & Format	4S14P 32700
	Casing	Plastic
	Dimension(LWH*TH)	328172216mm
	Weight	Approx. 9.8Kg
	Terminal	M8

Our Advantages

 ◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal       conditions.  ◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
 ◆ Free of maintenance .
 ◆ Internal cell balancing.
 ◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
 ◆ Can be charged using most standard lead-acid charges (set).
 ◆ Wider temperature range:-20℃~60℃.
 ◆ Support for Series application expansion (up to 51.2V) and two in parallels.
