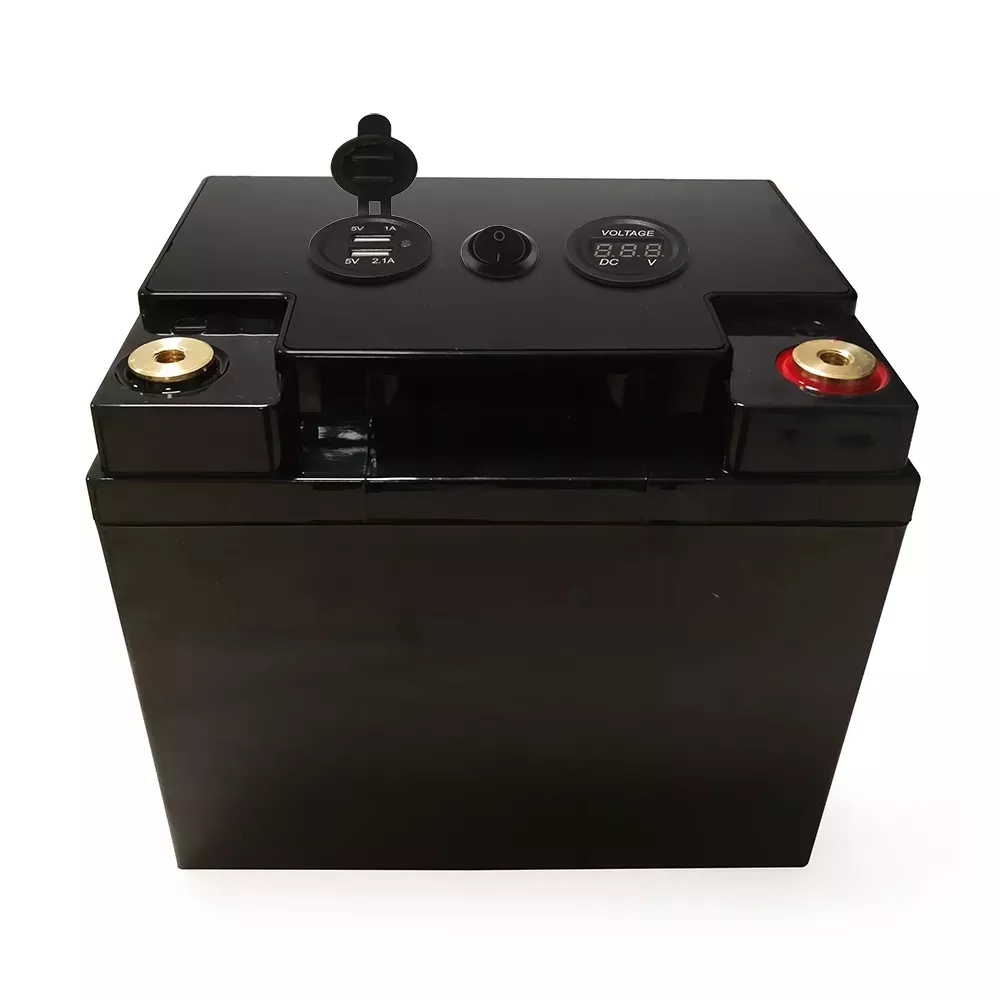

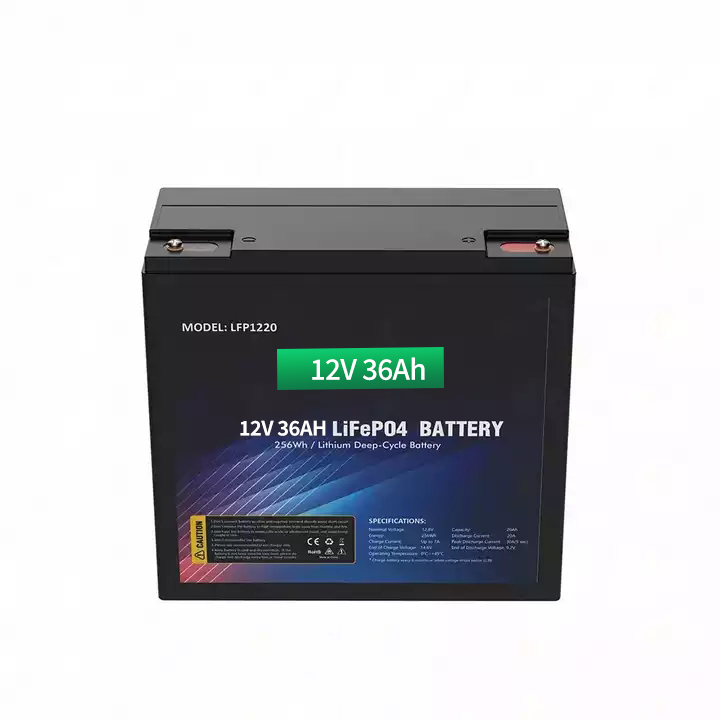

YIT 12V 36Ah LED Light LiFePO4 Lithium Battery New Design Large Capacity For Solar Energy Storage Systems-LITHIUM ION BATTERIES-Yitpower.cn: AGV Lithium Battery,Off-Grid Solar Batteries,Lithium Power Tool Batteries

Product Detail

Essential details

Supply Ability

Packaging & delivery

Lead time:

Quantity(pieces)	1 - 10	>10
Lead time (days)	7	To be negotiated

Electrical Characteristics	Nominal Voltage	12.8V
	Nominal Capacity	36Ah@0.2C
	Energy	460.8Wh
	Internal Resistance	≤55mΩ
	Cycle Life	2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
	Self Discharge	≤3.5% per month at 25℃
Standard Charging	Max.Charging Voltage	14.0~14.6V
	Charging Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
	Charging Current	15A
	Max.Charging Current	30A
Standard Discharging	Discharging Current	15A
	Max. Continuous Current	30A
	Max.Pulse Current	60A(<3S）
	Discharging Cut-off Voltage	10.0
Operating Condition	Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
	Storage Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Water Dust Resistance	IP55
Structure	Cell & Format	IFR32700 N60,4S6P
	Casing	Plastic
	Dimension(LWH*TH)	22395175*175
	Weight	Approx. 4.1Kg
	Terminal	M6
