Product description:The bus cabinet is the dc side bus control unit of the energy storage battery system, which is connected with the high voltage box and storage.
Product description:The bus cabinet is the dc side bus control unit of the energy storage battery system, which is connected with the high voltage box and storage.
Brand:
YITPayment:
T/TColor:
Support customizationLead Time:
Order(MOQ):

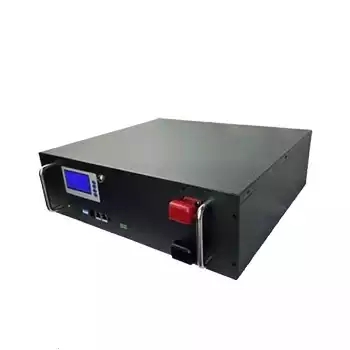

15Kwh Grid energy storage power station 48V 100Ah lifepo4 battery module solar system
Grid energy storage power station and solar system is a high voltage battery storage systembased on lithium iron phosphate battery
, is one of newenergy storage products developed and produced by ZXDY , it can be used to support reliable powerfor various types
of equipments and systems.48V 100Ah lifepo4 battery module is especially suitable for applicationscene of high power , limited
installation space ,restricted load-bearing and long cycle life .
Specifications:
Cycle Life : 6000+ Cycles
Communication Protocol: CAN RS485
Nominal Voltage : 51.2V
Rate Capacity : 100Ah
Energy Power : 5120Wh
Max Charge Voltage : 58.4V
Maximum Charging Current : 100A (1C)
Maximum Dicharge Current : 100A (1C)
Charging Temperature : -5~55°C
Discharging Temperature : -20~60°C
Dimensions(L*W*H) : 480*440*160mm
Studs : M8 Terminal
Weight : 49KG
