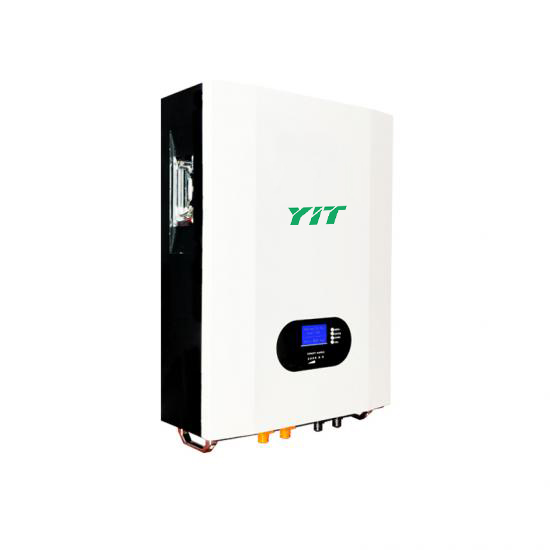

Powerwall Lithium ion battery pack

YIT 48V 200Ah 100Ah 50Ah 5Kwh 7Kwh 10Kwh Power Wall Li Ion Battery Lithium Ion Batteries Packs With Bms

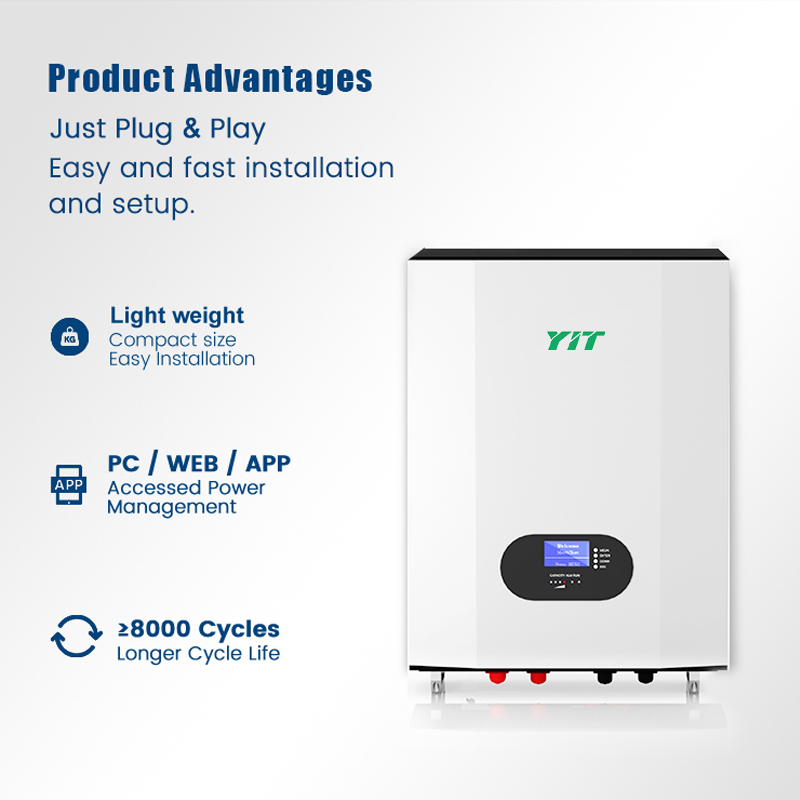

Product description:Compact size, High efficiency, Easy install on, High energy gy density is one of the main advantages of our wall mounted energy storage battery

Features and benefits
  • Brand:

    YIT
  • Payment:

    T/T
  • Color:

    Support customization
  • Lead Time:

  • Order(MOQ):

    1
Product Detail

Essential details
Place of Origin:
shenzhen,China
Brand Name:
YIT Battery / OEM
Model Number:
LFP200-48*2
Battery Type:
Lithium Ion, LiFePO4
Type:
LiFePO4 12.8/48/51.2V 200Ah
Cycle life:
≥6000 times
Container cover:
Sheet Metal
Battery protection:
BMS
BMS:
Already Matched
Warranty:
10 Years
Size:
680*495*185mm
Nominal Voltage:
12.8/48/51.2Volts
Nominal Capacity:
5/10/30/50KWH etc
Application:

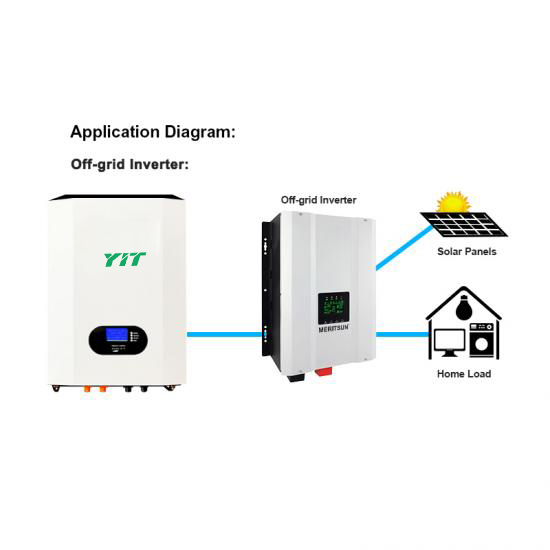

Solar Energy Storage Systems







Supply Ability
Supply Ability
100 Set/Sets per Week
Packaging & delivery
Packaging Details
In carton or customized wooden box;

Rosen Powerwall design belongs to Rosen patent.

Rosen reserves sole and only right for sales of it's powerwall.
Port
dongguan,Shenzhen
Lead time:
Quantity(pieces)1 - 100>100
Lead time (days)7To be negotiated

5kwh 10kwh Power Wall Mounted Home Solar Lithium Battery 48V Lifepo4 Powerwall 20kwh 30kwh
The batteries we produce are safe. All wall mounted batteries use the safest and most stable components, including LiFePO4 cathode
and built-in battery management system (BMS). BMS protects the battery from high or low voltage, high current, short circuit,
overheating or supercooling. These are the most common causes of battery failure, and we have taken all precautions to mitigate
these risks of all batteries。


Paraneters

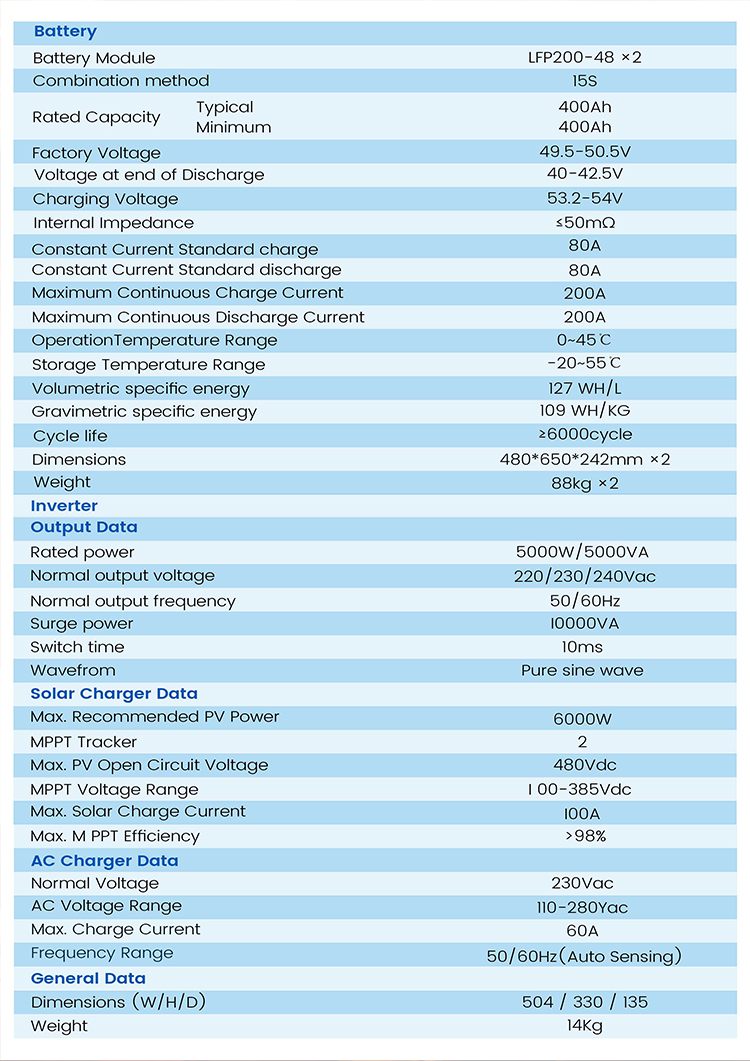

Data Sheet




Energy ( Kwh_ )
5Kwh
10Kwh
15Kwh
20Kwh
30Kwh
Nomina1 Vo1tage
51.2V
51.2V
51.2V
51.2V
51.2V
Nominal Capaci ty
100Ah
200Ah
300Ah
400Ah600Ah
100Ah
Net_ Wei ght_ ( indudes base)
about 55KG
about 95KG
about_ 135KG
about 190KG
about 270KG
Discharge Vo1tage
40V-58.4V
40V-58.4V
40V-58.4V
40V-58.4V
40V-58.4V
Charging Vo1 tage
56.8V-58.4V
56.8V-58.4V
56.8V-58.4V
56.8V-58.4V
56.8V-58.4V
Recommened Charging Current
20A
40A
60A
80A
120A
Max Charging Current
50A
100A
100A
100A
100A
Recommended Di scharging Current
20A
40A
60A
80A
120A
Max Di scharging Current
50A
100A
150A
200A
300A
Max Loaded Power
5- 15kw
peak charging /di scharging current
250A @ 5sec ( Sing1e Battery )

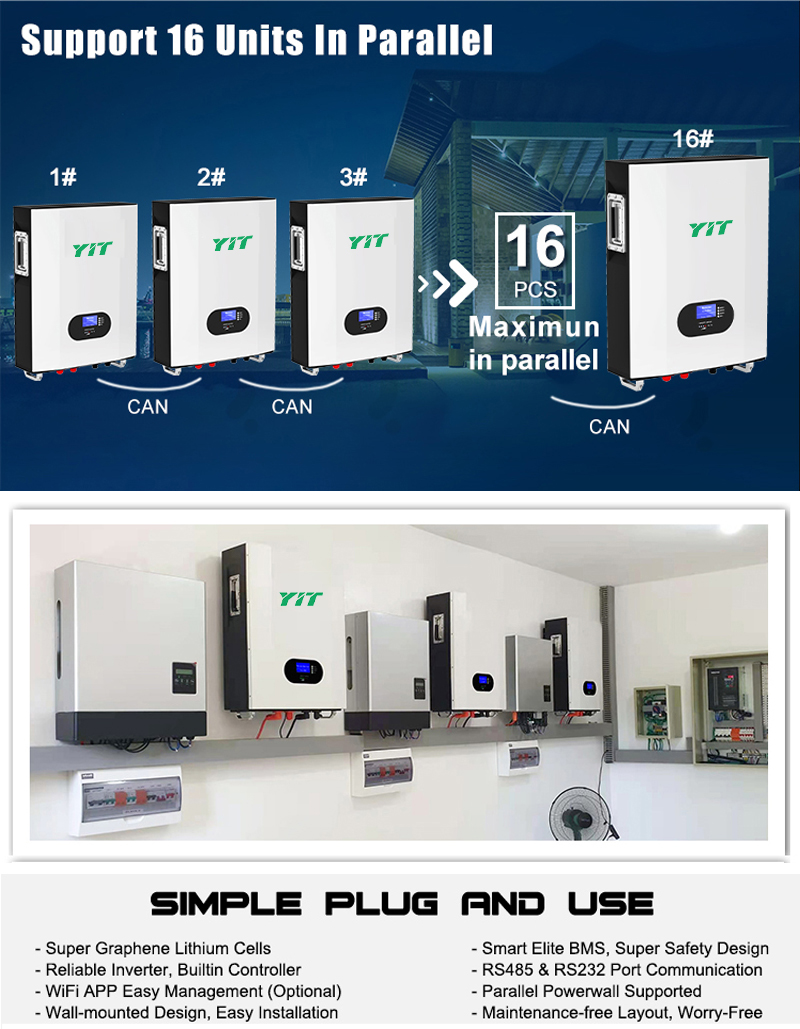

Communication
RS232/ RS485/ CAN ( Optional/B1uetooth/Wifi )
Depth of Di scharge
95
Nos of Ce11s
16PCS
16pcs
16pcs
16pcs*2
16pcs*2
Working Temperature
0°C-50°C Charge
- 10°C-50°C Charge
The She1f Temperature
-20C-60°C Charge
Protection Degree

Humi dlity
5-95% (RH)
Certificates
CE/UN38.3/MSDS
Warrantyperiod
5 + Years
Cycle








The wall mounted household energy storage batteries we produce are lithium iron phosphate batteries. Compared with lead-acid and
other lithium batteries, lithium iron phosphate batteries have significant advantages, including improved discharge and charging
efficiency, longer life and the ability to conduct deep circulation while maintaining 48v lifepo4 powerwall are usually more
expensive, but the cost is higher during the life of the product. No maintenance and long service life make it a long-term
solution worth investment and wisdom.




The wall mounted energy storage battery produced by us has a high energy density, reaching 460-600wh / kg, which is about 6-7
times that of lead-acid batteries. Long service life, up to 6 years. The weight is about 1 / 5-6 of the lead acid product in the
same volume.
