Overview
Essential details
- Warranty:
3years
- Anode Material:
LFP
- Chargeable:
Yes
- Application:
SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Solar Energy Storage Systems, Uninterruptible Power Supplies
- Battery Size:
LifePO4
- Brand Name:
YIT
- Certification:
MSDS,UN38.3,CE,FCC
- Model Number:
12.8V 7Ah LiFePO4
- Place of Origin:
DONGGUANG
- Weight:
0.75KG
- The charging ratio:
1C
- The discharge rate:
1C
- Storage Type:
dry, cool and ventilation
- Battery type:
Lifepo4/lithium Battery
- Product name:
18650 Lithium Battery Pack
Supply Ability
- Supply Ability
- 10000 Piece/Pieces per Month
Packaging & delivery
- Packaging Details
standard export carton box or wooden box to protect hybrid inverter in transportation
- Port
Foshan/ Shenzhen/Guangzhou
- Lead time:
| Quantity(pieces) | 1 - 1 | >1 |
| Lead time (days) | 7 | To be negotiated |

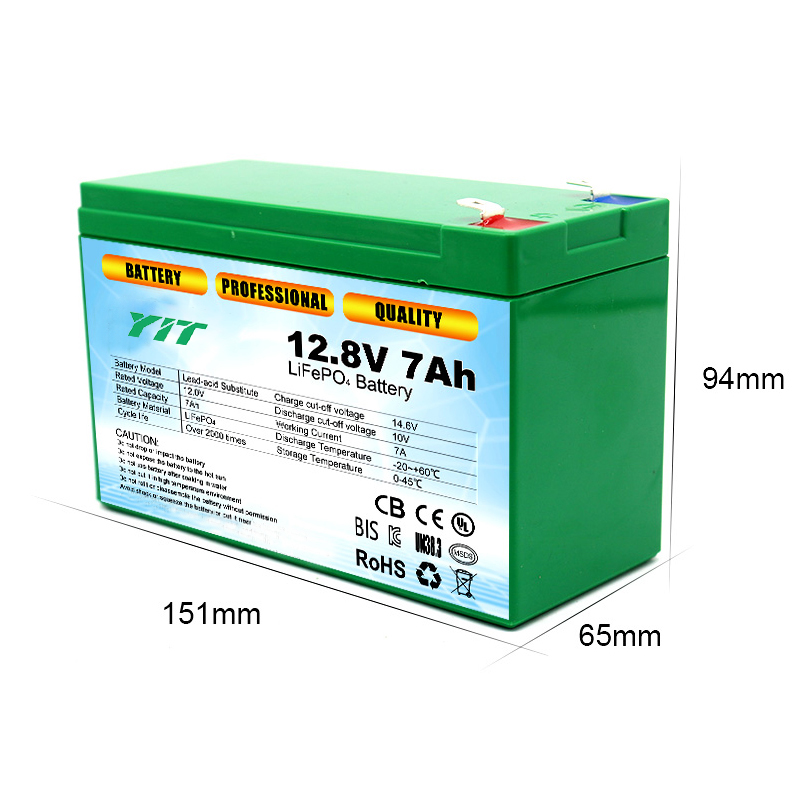

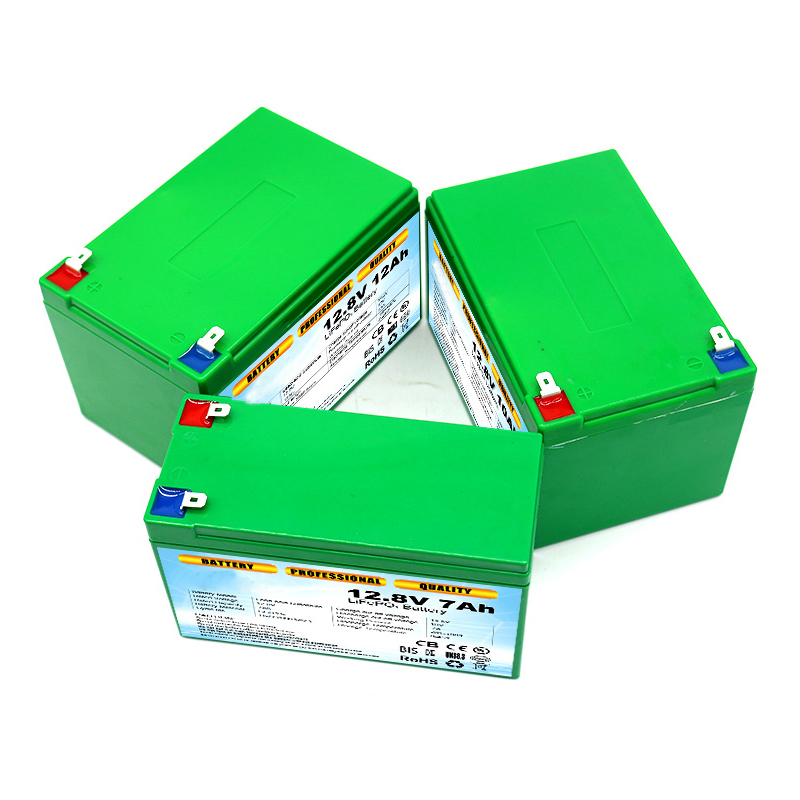

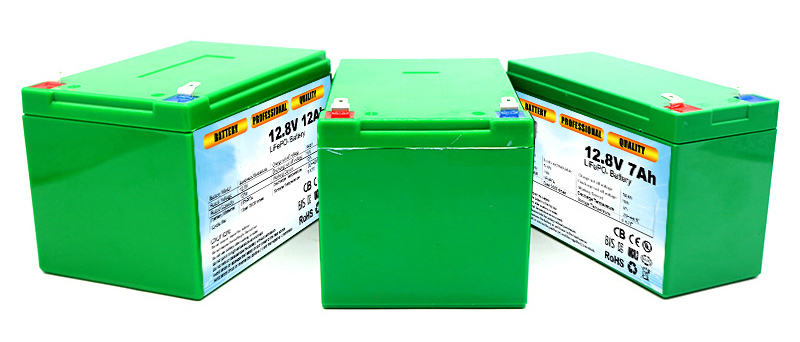

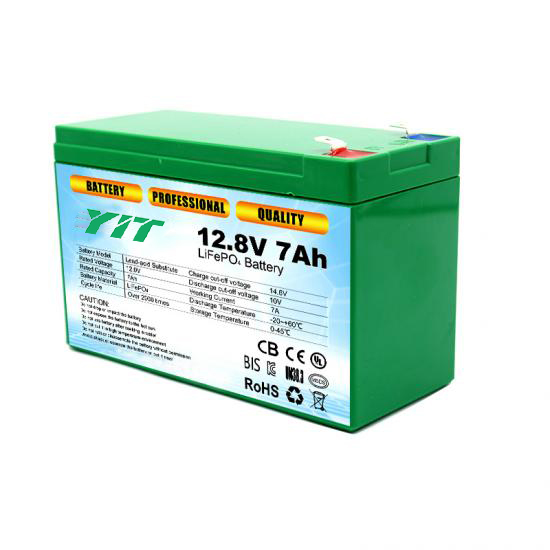

12.8V 7Ah LiFePO4 Battery Lead Acid Replacement Lithium Battery
12.8v lithium battery high power 7Ah LiFePO4 battery module, with compact green shell, built-in BMS , is a key plug and play
battery solution, which can directly replace typical lead-acid (AGM / gel) battery applications. With about half of the weight of
the relatively large lead-acid battery, it provides twice the running time, and more than 5000 times of excellent floating charge
and cycle life can bring low operating cost and high return on investment for end-user applications.
Product Parameters Of Lead Acid Replacement Battery |
Battery Pack Specifications | 12.8V 7Ah |
Chemistry | Lifepo4 |
Nominal Voltage(V) | 12.8V |
Capacity(AH) | 7Ah |
Battery Box Size | 151*65*94mm |
Weight | 0.75KG |
Battery cell | 26650 3.2V 3500mah lifepo4 Battery cell |
Number of Cells in Series | 4S |
Number of cell in Parallel | 2P |
Total Number of Cells | 8pcs |
KWH | 89.6WH |
BMS Type | 4S 10A some port BMS(can be customized) |
Operating Voltage range (V) | 10V~14.6V |
Charge voltage | 14.6V |
Charging Mode | CC/CV |
Cycle life | 5000 times（@ 85 DOD） |
Service life | 2 years |
Battery Box Material | ABS |
Cabinet design ( IP Rating) | IP 65 |
Discharge Cut-off Voltage | 10V±0.2V |
Discharge Temperature | -10 ℃ to 60 ℃ (-4F to 140F) @60±25% |
The deep circulating lead acid lithium battery has a compact structure. It adopts ABS plastic box and built-in BMS design to
prevent overcharge, overdischarge, overcurrent, overvoltage, overheating and short circuit of the battery.
Lithium battery is widely used in RV, camper, RV, solar energy system (off grid system), ships, ships, tug motors, yatch, and can
replace lead-acid / AGM / gel battery.
