Overview
Essential details
- Place of Origin:
DONGGUANG
- Brand Name:
YIT
- Model Number:
48V 150Ah
- Battery Type:
LiFePO4
- Application:
Home Appliances
- Product name:
Lithium Iron Phosphate Lifepo4 Battery
Supply Ability
- Supply Ability
- 10000 Piece/Pieces per Month
Packaging & delivery
- Packaging Details
standard export carton box or wooden box to protect hybrid inverter in transportation
- Port
Foshan/ Shenzhen/Guangzhou
- Lead time:
| Quantity(pieces) | 1 - 1 | >1 |
| Lead time (days) | 7 | To be negotiated |
48V 150Ah LiFePO4 Battery Module Cabinet System Solar Lithium Iron Phosphate Battery Pack
The product adopts modular design, with higher integration and saving installation space; Using high-performance lithium iron
phosphate cathode material, the battery cell has good consistency; Various forms of communication interfaces, such as can / RS485,
can be customized according to customer needs, which is convenient and flexible to use the system for remote monitoring. High
energy and low power consumption lithium battery equipment realizes higher energy supply, lower energy consumption, and reduces
environmental pollution; Adopt all-round and multi-level battery protection strategies and fault isolation measures to ensure the
safe operation of the system.

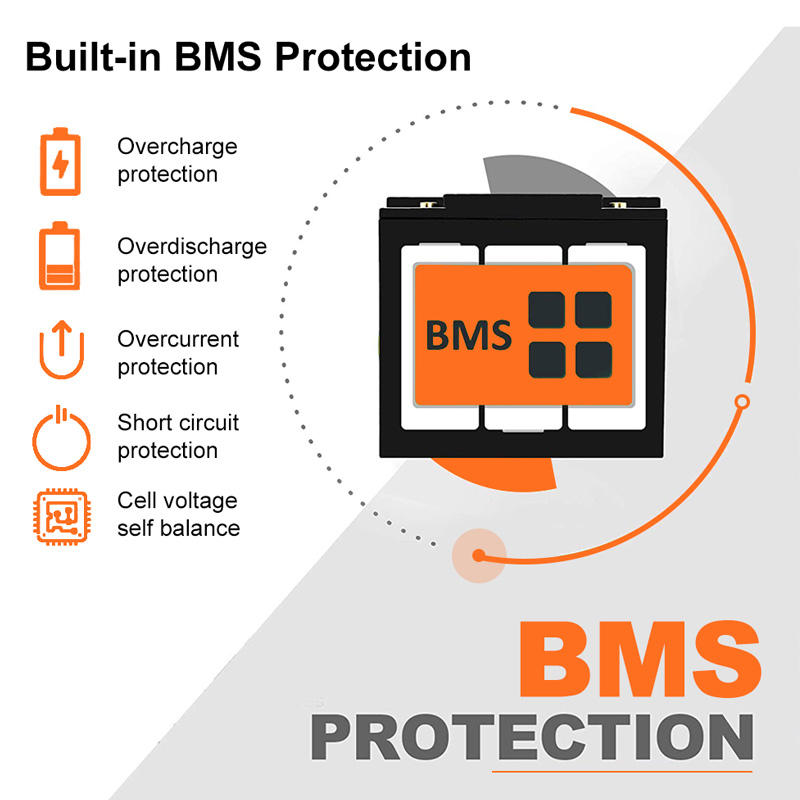

Battery storage station is equipped with BMS intelligent management system and has six protection functions
● Overcharge protection
● Over discharge protection
● overload protection
● short-circuit protection
● high temperature protection
● battery cell balancing
battery pack 48v lifepo4 product parameters
Battery type:lithium iron phosphate battery
Product model: 48v150ah-a2
Nominal voltage: 48V
Nominal capacity: 150Ah
Maximum voltage: 54.7v
Minimum voltage: 37.5v
Charging current ≤ 50A
Discharge current ≤ 100A
Communication mode: RS485, RS232
Power display:yes
Battery case metal:black
Temperature range :0 ~ 50 ° C (charging), - 10 ~ 60 ° C (discharging)

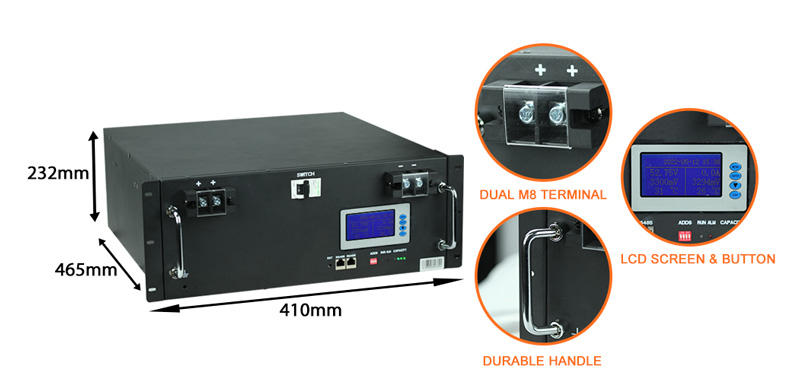

Battery size :465 * 232 * 410mm (standard 6U chassis)
Battery weight: 65kg (about)
Remarks: it can be customized according to the needs The size, shell, socket, etc. can be adjusted according to the needs
Installation method / installation method cabinet type
