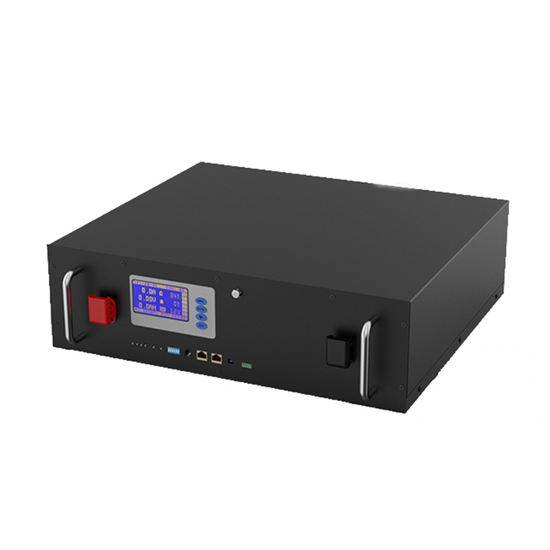

2.4Kwh 48v 50Ah Lithium Ion Lifepo4 Iron Phosphate Battery Cabinet System Base Station Battery

Lead time:

Quantity(pieces)	1 - 1	>1
Lead time (days)	7	To be negotiated

2.4Kwh Lithium Ion Lifepo4 Iron Phosphate Battery Cabinet System Base Station 48v 50Ah Battery
1. Brand new class a lithium battery, with a deep cycle of more than 5000 times and a DOD of up to 90%.
2. Compact, equipped with necessary installation cables and accessories.
3. Built in intelligent BMS can perfectly match all solar inverters and solar projects.
4. We accept OEM and your logo design.
Product parameters
Battery type: lithium iron phosphate battery
Product model: 48v50ah-a2
Nominal voltage: 48V
Nominal capacity: 50ah
Maximum voltage: 54.75v
Minimum voltage: 37.5v
Charging current ≤ 50A
Discharge current ≤ 50A

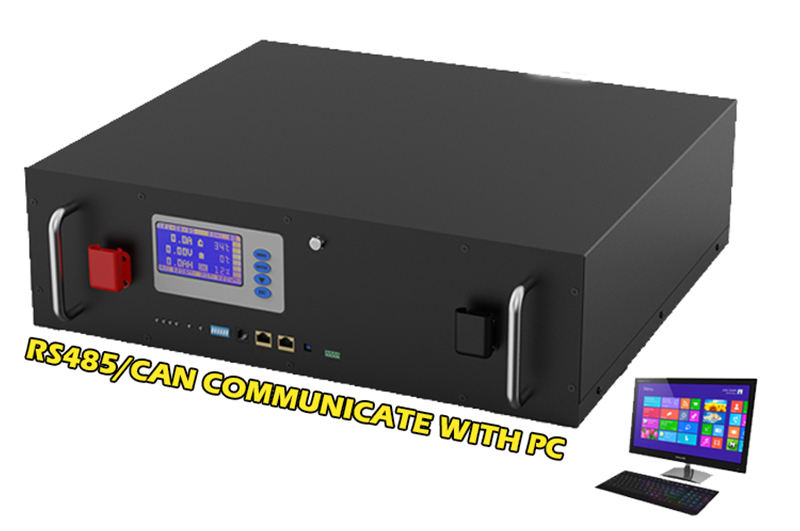

Communication mode: RS485, RS232
Power display：yes
Battery case metal ： black
Temperature range ：0 ~ 50 ° C (charging), - 10 ~ 60 ° C (discharging)
Battery size ：483 * 385 * 133mm (standard 3U chassis)
Battery weight ：24kg (about)
Charger：54.75v10a (optional)
Remarks: it can be customized according to the needs The size, shell, socket, etc. can be adjusted according to the needs
Installation method ：cabinet type

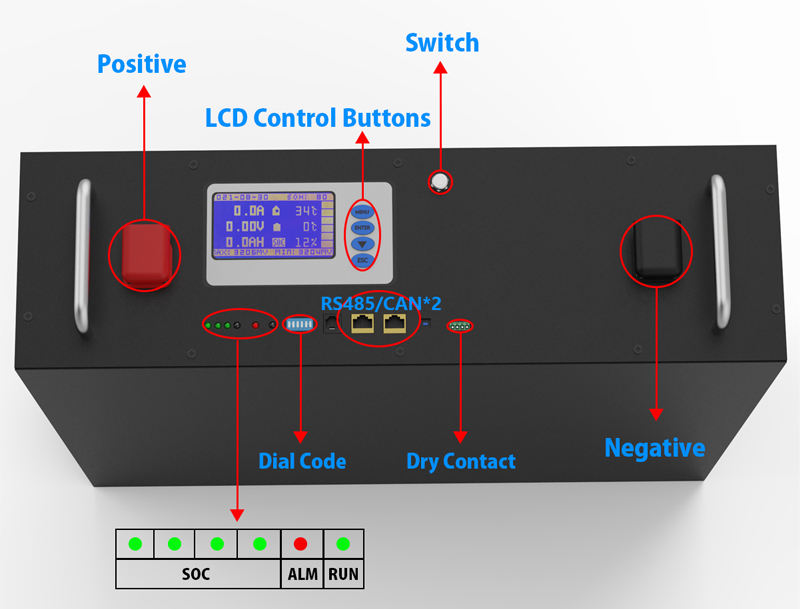

Base station 48v battery Products Button Definition
1.Dual Postive Socket:battery output positive or parallel positive line
2.Dual Negative Socket:battery output negative or parallel negative line
3.Power switch:OFF/ON must be in the ON state when in use
4.Handle:Flexible handle can be flat
5.LCD Screen:can control lcd screen
6.SOC:the number of green lights show the remaining power
7.ALM:red lights flashing when an alarm occurs,always on during portection status
8.Run:green lights flashing during standby and charging model.Green light always on when discharging
9.ADDS:Dip swtich
10.CAN/RS485:support CAN/RS485 communication cascade port
11.RST:reset,restore settings
