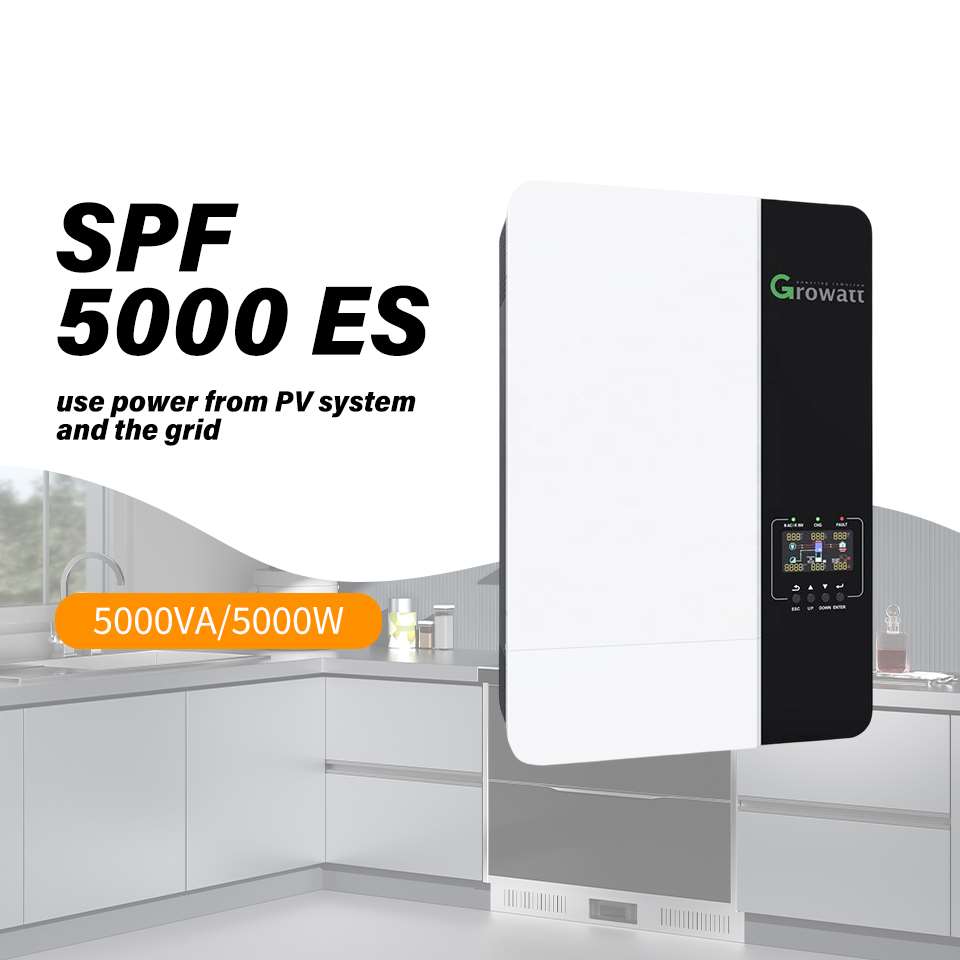

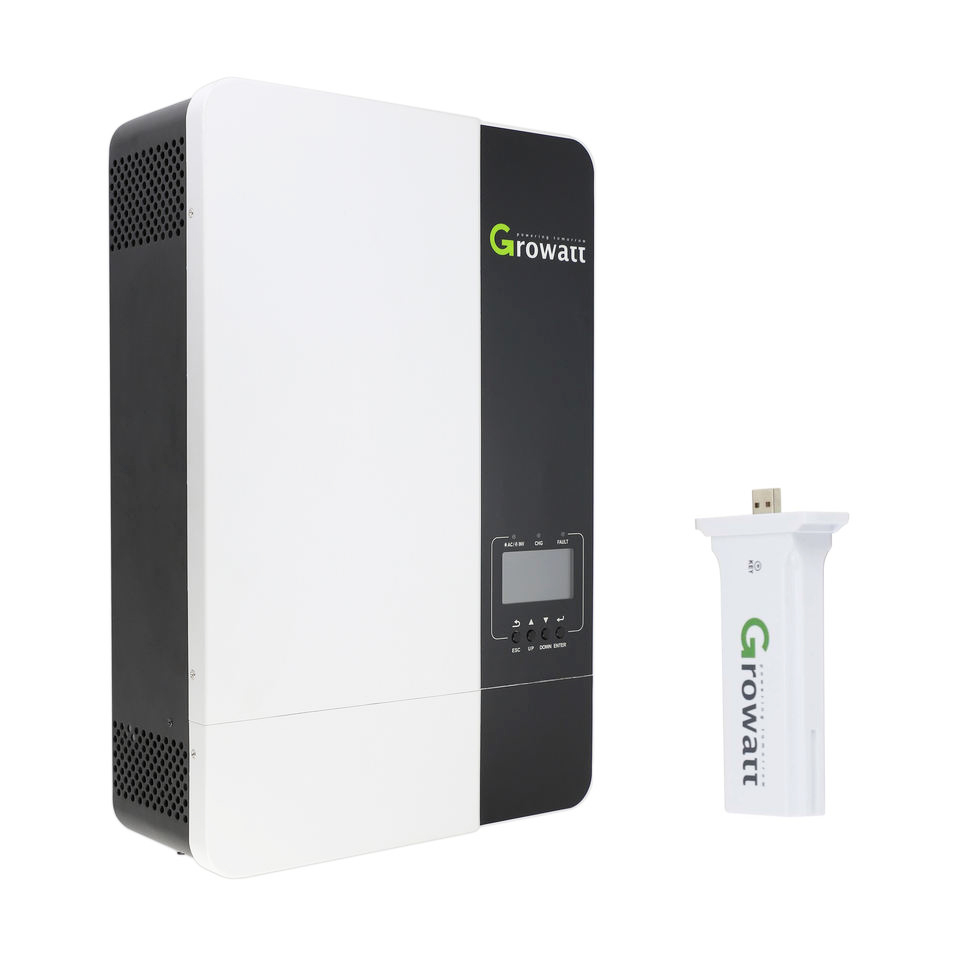

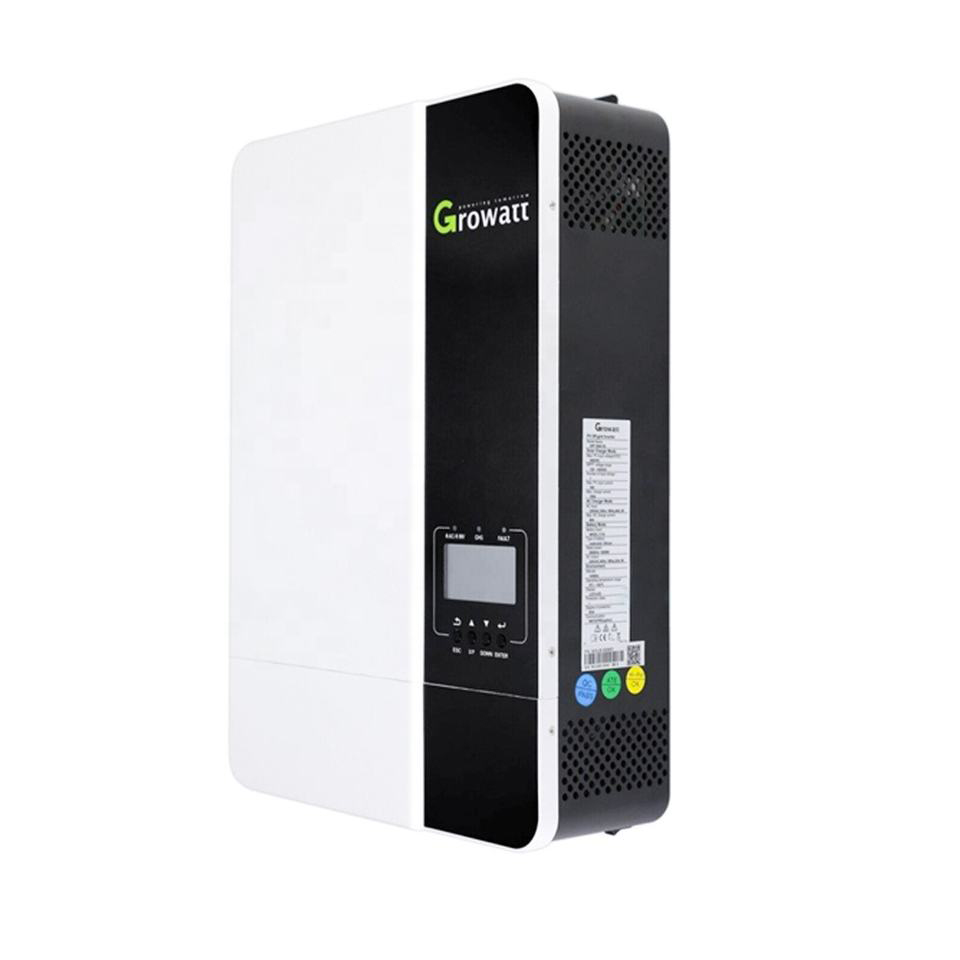

Growatt Spf 5000 ES 5kw High Frequency On Off Grid Hybrid Mppt Pure Sine Wave Inverter 48v 5000w Solar Inverter-INVERTER-Yitpower.cn: AGV Lithium Battery,Off-Grid Solar Batteries,Lithium Power Tool Batteries

Product Detail

Essential details

Supply Ability

Packaging & delivery


Datasheet	SPF 3000 ES	SPF 3500 ES	SPF 5000 ES
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated Power	3000VA/ 3000W	3500VA/ 3500W	5000VA/ 5000W
Parallel Capability	NO	Yes, 6 units maximum
AC Voltage Regulation(Battery Mode)	230VAC土5%@50/60HZ
Surge Power	60000VA	7000VA	10000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Transfer Time	10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power	4000W	4500W	6000W
MPPT Range @ Operating Voltage	120VDC ~430VDC
Number of Independent MPP Trackers/Strings Per MPP Tracker	1/1
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Solar Charge Current	60A	80A	100A
AC CHARGER
Charge Current	60A		80A
AC Input Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree	IP20
Dimension (W/H/D)	330/485/135mm
Net Weight	11.5kg	11.5kg	12kg
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Altitude	<2000m
Operating Temperature	0°C-55°C
Storage Temperature	-15°C-60°C
