Product Detail

Essential details

Place of Origin:: guangdong

Brand Name:: YIT

Model Number:: YIT20KW

Input Voltage:: 24VDC/48VDC

Output Voltage:: 110V/220V(V)

Output Current:: According loading

Output Frequency:: 50/60(HZ)

Output Type:: Single

Size:: 593x370x820mm

Type:: DC/AC Inverters

Inverter Efficiency:: 85%

Certificate:: CE/ISO9001

Warranty:: 12 monthes

Weight:: 68

Product name:: Off-grid solar Inverter

Model:: HB-2024

Rated Capacity:: 60KVA

Rated Power:: 20KW

MPPT Efficiency:: 98-99%

Transformer:: Toroidal transformer

Waveform:: Purer Sine Wave

Customized:: Accept OEM/ODM

Interface:: LED graphic

Transfer Time:: ≤4ms

Supply Ability

Supply Ability: 10000 Piece/Pieces per Month

Packaging & delivery

Packaging Details

Port

Lead time:

Quantity(pieces)	1 - 10	>10
Lead time (days)	5	To be negotiated

Inverter Feature
1. Pure sine wave output;
2. High efficiency toroidal transformer lower loss ;

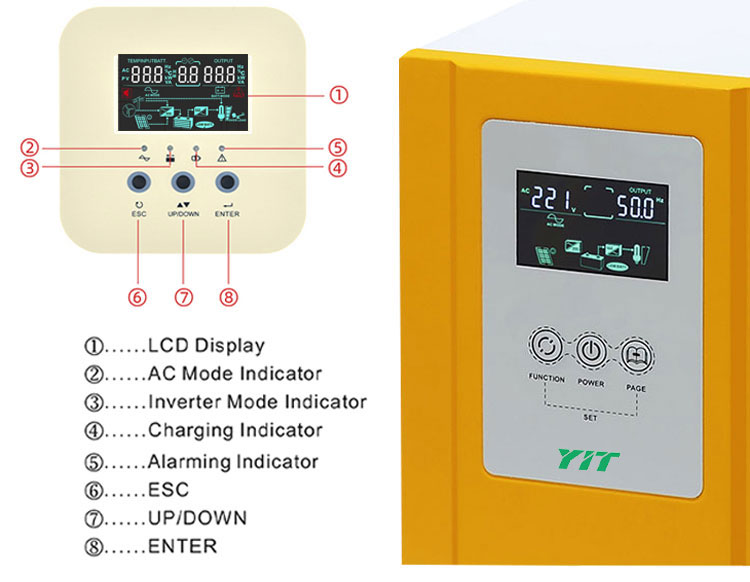

3. Intelligent LCD integration display;
4. AC charge current 0-20A adjustable; battery capacity configuration more flexible;
5. Three types working modes adjustable:AC first, DC first, energy-saving mode;
6. Frequency adaptive function, adapt to different grid environments;
7. Built-in PWM or MPPT controller optional;
8. Added fault code query function,facilitate user to monitor the operation state in real time;
9. Supports diesel or gasoline generator, adapt any tough electricity situation;
10. RS485 communication port/APP optional.









Model WD/WD-T		153192 (153)	203192 (203)	253240 (253)
Rated Power		15KW	20KW	25KW
Peak Power(20ms)		45KVA	60KVA	75KVA
Start Motor		10HP	12HP	15HP
Battery Voltage		192VDC	192VDC	240VDC
Size(LWHmm)		593x370x820
Packing Size(LWHmm)		656420937
N.W.(kg)		110	116	123
G.W.(kg)		124	130	137
Installation Method		Tower
Input	DC Input Voltage Range	10.5-15VDC(Single battery voltage)
	AC Input Voltage Range	92VAC~128VAC(110VAC) / 102VAC~138VAC(120VAC) / 185VAC~255VAC(220VAC) / 195VAC~265VAC(230VAC) / 205VAC~275VAC( 240VAC) (8KW~40KW)
	AC Input Frequency Range	45Hz~55Hz(50Hz)/ 55Hz~65Hz(60Hz)
	Max AC charging current	0A~20A(Depending on the model,The maximum charging power is 1/4 of the rated power)
	AC charging method	Three-stage (constant current, constant voltage, floating charge)
Output	Efficiency(Battery Mode)	≥85%
	Output Voltage(Battery Mode)	110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
	Output Frequency(Battery Mode)	50Hz±0.5 or 60Hz±0.5
	Output Wave(Battery Mode)	Pure Sine Wave
	Efficiency(AC Mode)	>99%
	Output Voltage(AC Mode)	Follow input
	Output Frequency(AC Mode)	Follow input
	Output waveform distortion (Battery Mode)	≤3%(Linear load)
	No load loss(Battery Mode)	≤1% rated power
	No load loss(AC Mode)	≤2% rated power( charger does not work in AC mode)
	No load loss (Energy saving Mode)	≤10W
Battery Type (selectable)	VRLA Battery	Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
	Customize battery	Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection	Battery undervoltage alarm	Factory default: 11V(Single battery voltage)
	Battery undervoltage protection	Factory default: 10.5V(Single battery voltage)
	Battery overvoltage alarm	Factory default: 15V(Single battery voltage)
	Battery overvoltage protection	Factory default: 17V(Single battery voltage)
	Battery overvoltage recovery voltage	Factory default: 14.5V(Single battery voltage)
	Overload power protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection	>90°C(Shut down output)
Alarm	A	Normal working condition, buzzer has no alarm sound
	B	Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
	C	When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller (Optional)	Charging Mode	PWM or MPPT
	charging current	50A/100A
	PV Input Voltage Range	PWM: 240V-352V(192V system) ;300V-400V(240V system) / MPPT: 240V-360V(192V system);300V-400V(240V system)
	Max PV Input Voltage(Voc) (At the lowest temperature)	PWM: 500V(240V system) / MPPT: 450V(192V system);500V(240V system)
	PV Array Maximum Power	192V system: (PWM:11.2KW(50A)/22.4KW(100A)) / (MPPT:11.2KW(50A)/11.22KW(100A)); 240V system: (PWM:14KW(50A)/28KW(100A)) / (MPPT:14KW(50A)/142KW(100A))
	Standby loss	≤3W
	Maximum conversion efficiency	>95%
Working Mode		Battery First/AC First/Saving Energy Mode
Transfer Time		≤4ms

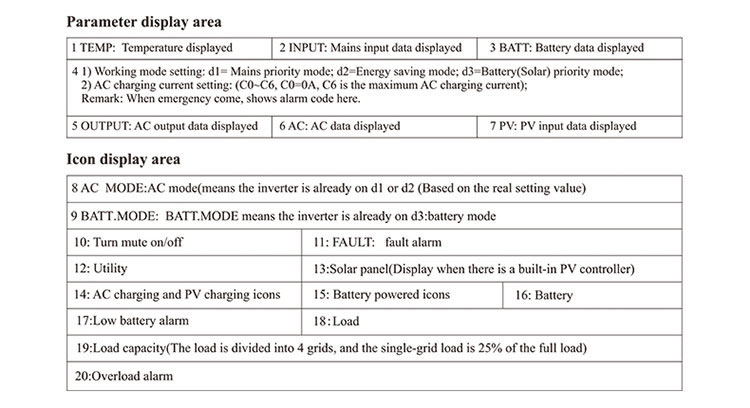

Display		LCD

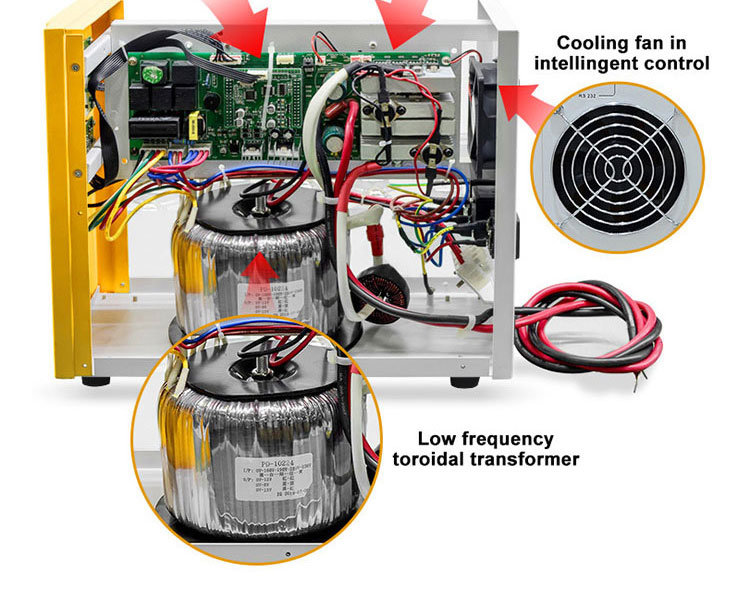

Thermal method		Cooling fan in intelligent control

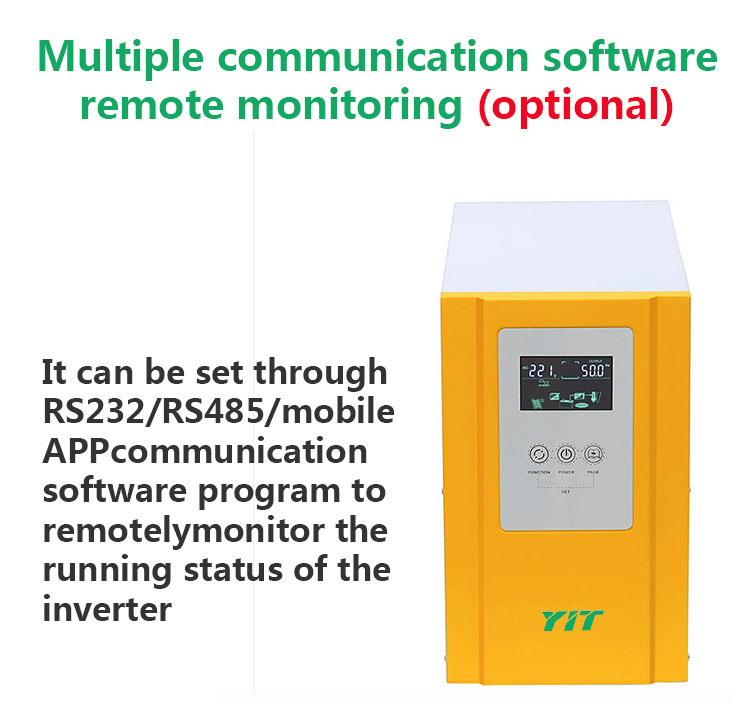

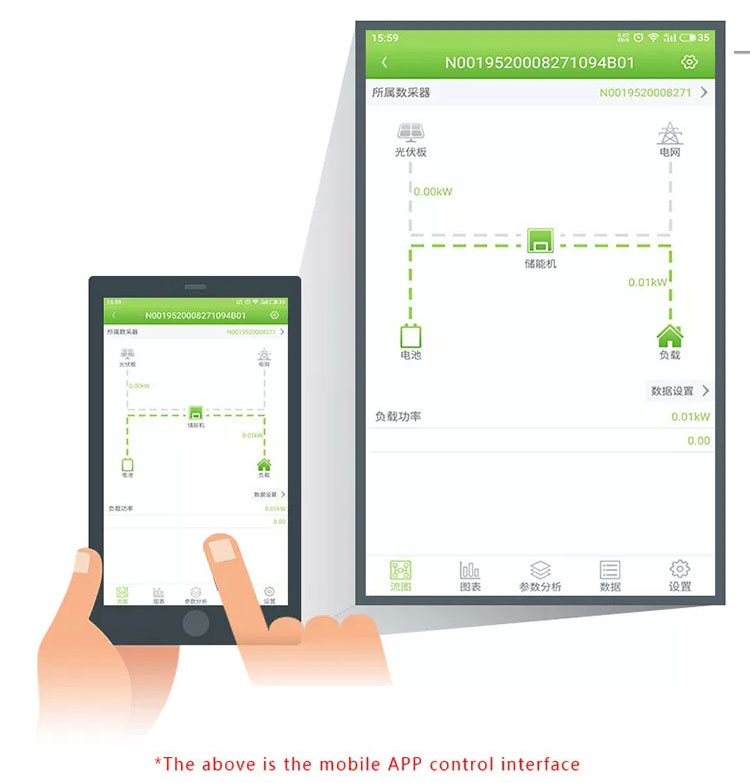

Communication(Optional)		RS485/APP(WIFI monitoring or GPRS monitoring)
WD series power is from 700w~40kw If you want to get more information, Please contact us


1. Battery number and capacity should be configured according to the rated voltage of the solar power system or inverter;
2. We offer 3 optional working modes:

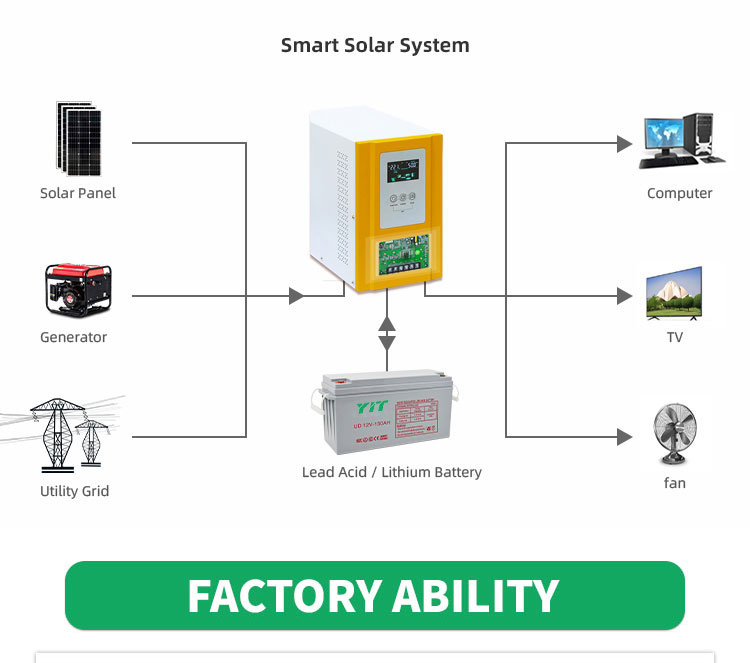

01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
