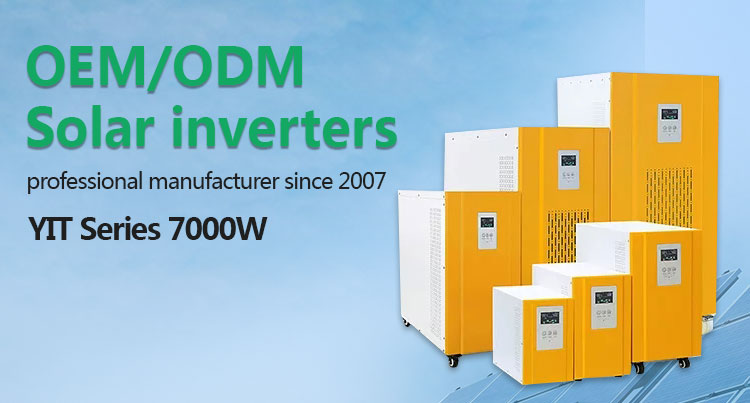

YIT 7000W Power Inverter Modified Sine Wave Inverter UPS with Charger Power inverter-INVERTER-Yitpower.cn: AGV Lithium Battery,Off-Grid Solar Batteries,Lithium Power Tool Batteries

Product Detail

Essential details

Place of Origin:: guangdong

Brand Name:: YIT

Model Number:: YIT7000W

Input Voltage:: 24VDC/48VDC

Output Voltage:: 110V/220V(V)

Output Current:: According loading

Output Frequency:: 50/60(HZ)

Output Type:: Single

Size:: 491x260x490mm

Type:: DC/AC Inverters

Inverter Efficiency:: 85%

Certificate:: CE/ISO9001

Warranty:: 12 monthes

Weight:: 39

Product name:: Off-grid solar Inverter

Model:: HB-2024

Rated Capacity:: 21000VA

Rated Power:: 7000W

MPPT Efficiency:: 98-99%

Transformer:: Toroidal transformer

Waveform:: Purer Sine Wave

Customized:: Accept OEM/ODM

Interface:: LED graphic

Transfer Time:: ≤4ms

Supply Ability

Supply Ability: 10000 Piece/Pieces per Month

Packaging & delivery

Packaging Details

Port

Lead time:

Quantity(pieces)	1 - 10	>10
Lead time (days)	5	To be negotiated

Inverter Feature
1. Pure sine wave output;
2. High efficiency toroidal transformer lower loss ;
3. Intelligent LCD integration display;
4. AC charge current 0-20A adjustable; battery capacity configuration more flexible;
5. Three types working modes adjustable:AC first, DC first, energy-saving mode;
6. Frequency adaptive function, adapt to different grid environments;
7. Built-in PWM or MPPT controller optional;
8. Added fault code query function,facilitate user to monitor the operation state in real time;
9. Supports diesel or gasoline generator, adapt any tough electricity situation;
10. RS485 communication port/APP optional.










Model WD/WD-T		40248/96		50248/96	60248/96	70248/96/192
		-402		-502	-602	-702
Rated Power		4000W		5000W	6000W	7000W
Peak Power(20ms)		12000VA		15000VA	18000VA	21000VA
Start Motor		3HP		4HP	4HP	5HP
Battery Voltage		48/96VDC		48/96VDC	48/96VDC	48/96/192VDC
Max AC charging current		0A~20A(Depending on the model,The maximum charging power is 1/4 of the rated power)
Built-in solar controller charging current (optional)		48V(PWM:10A~120A/MPPT:10A~100A) / 96V(50A/100A(PWM or MPPT))
Size(LWHmm)		491x260x490
Packing Size(LWHmm)		545x315x550
N.W.(kg)		29		30	31.5	36
G.W.(kg)		32		33	34.5	39
Installation Method		Tower
Model WD		80248/96/192	10348/96/192	12396/192
		-802	-103	-123
Rated Power		8KW	10KW	12KW
Peak Power(20ms)		24KVA	30KVA	36KVA
Start Motor		5HP	7HP	7HP
Battery Voltage		48/96/192VDC	48/96V/	96/192VDC
			192VDC
Max AC charging current		0A~40A(Depending on the model,The maximum
		charging power is 1/4 of the rated power)
Built-in solar controller charging current (optional)		PWM:(48V:120A;96V:50A/100A;192V/384V:50A)
		MPPT:(48V:100A/200A;96V:50A/100A;192V/384V:50A)
Size(LWHmm)		540x350x695
Packing Size(LWHmm)		600410810
N.W.(kg)		66	70	77
G.W.(kg)		77	81	88
Installation Method		Tower
Input	DC Input Voltage Range	10.5-15VDC(Single battery voltage)
	AC Input Voltage Range	73VAC~138VAC(110VAC)/ 83VAC~148VAC(120VAC) /
		145VAC~275VAC(220VAC) / 155VAC~285VAC(230VAC) /
		165VAC~295VAC( 240VAC) (700W~7000W)
		92VAC~128VAC(110VAC) / 102VAC~138VAC(120VAC) /
		185VAC~255VAC(220VAC) / 195VAC~265VAC(230VAC) /
		205VAC~275VAC( 240VAC) (8KW~40KW)
	AC Input Frequency Range	45Hz~55Hz(50Hz)/ 55Hz~65Hz(60Hz)
	AC charging method	Three-stage (constant current, constant voltage, floating charge)
Output	Efficiency(Battery Mode)	≥85%
	Output Voltage(Battery Mode)	110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
	Output Frequency(Battery Mode)	50Hz±0.5 or 60Hz±0.5
	Output Wave(Battery Mode)	Pure Sine Wave
	Efficiency(AC Mode)	>99%
	Output Voltage(AC Mode)	110VAC±10% / 120VAC±10% / 220VAC±10% /
		230VAC±10% / 240VAC±10%(700W~7000W);
		Follow input(8KW~40KW)
	Output Frequency(AC Mode)	Follow input
	Output waveform distortion	≤3%(Linear load)
	(Battery Mode)
	No load loss(Battery Mode)	≤1% rated power
	No load loss(AC Mode)	≤2% rated power( charger does not work in AC mode)
	No load loss	≤10W
	(Energy saving Mode)
Battery Type	VRLA Battery	Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
(selectable)	Customize battery	Charging and discharging parameters of different
		types of batteries can be customized according to user requirements
		(charging and discharging parameters of different
		types of batteries can be set through the operation panel)
Protection	Battery undervoltage alarm/Battery undervoltage protection/
	Battery overvoltage alarm/Battery overvoltage protection/
	Battery overvoltage recovery voltage/Overload power protection/
	Inverter output short circuit protection/Temperature protection
Alarm	A	Normal working condition, buzzer has no alarm sound
	B	Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
	C	When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller	Charging Mode	PWM or MPPT
(Optional)	PV Input Voltage Range	PWM: 15V-44V(12V system); 30V-44V(24V system); 60V-88V(48V system);
		120V-176V(96V system);240V-352V(192V system) ;
		300V-400V(240V system); 480V-704V(384V system)
		MPPT: 15V-120V(12V system); 30V-120V(24V system);
		60V-120V(48V system); 120V-240V(96V system);240V-360V(192V system);
		300V-400V(240V system);480V-640V(384V system)
	Max PV Input Voltage(Voc)	PWM: 50V(12V/24V system); 100V(48V system);
	(At the lowest temperature)	200V(96V system);400V(192V system);500V(240V system) ;750V(384V system)
		MPPT: 150V(12V/24V/48V system); 300V(96V system);450V(192V system);
		.500V(240V system) ;800V(384V system)
	PV Array Maximum Power	12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/
		700W(50A)/840W(60A)/1120W(80A)/1400W(100A);
		24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/
		1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A);
		48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/
		3360W(60A)/4480W(80A)/5600W(100A)/6720W(PWM 120A)/5.6KW&11.2KW(MPPT 100A/200A);
		96V system: 5.6KW(50A)/11.2KW(100A);192V system: (PWM:11.2KW(50A)/22.4KW(100A)) / (MPPT:11.2KW(50A)/11.2*2KW(100A));
		240V system: (PWM:14KW(50A)/28KW(100A)) / (MPPT:14KW(50A)/142KW(100A));384V system: (PWM:22.4KW(50A)/44.8KW(100A)) / (MPPT:22.4KW(50A)/22.42KW(100A))
	Standby loss	≤3W
	Maximum conversion efficiency	>95%
Working Mode		Battery First/AC First/Saving Energy Mode
Transfer Time		≤4ms
Display		LCD
Thermal method		Cooling fan in intelligent control
Communication(Optional)		RS485/APP(WIFI monitoring or GPRS monitoring)


1. Battery number and capacity should be configured according to the rated voltage of the solar power system or inverter;
2. We offer 3 optional working modes:
01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly aftervoltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue tosupply power via inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be nooutput from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD showsthe output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to ACto supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first.When battery capacity is not enough, the grid will continue to supply power automatically.





Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.

Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
