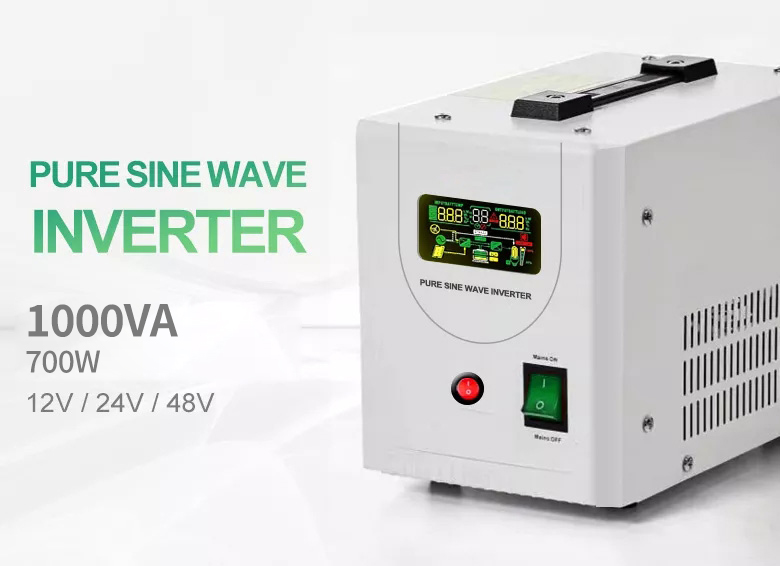

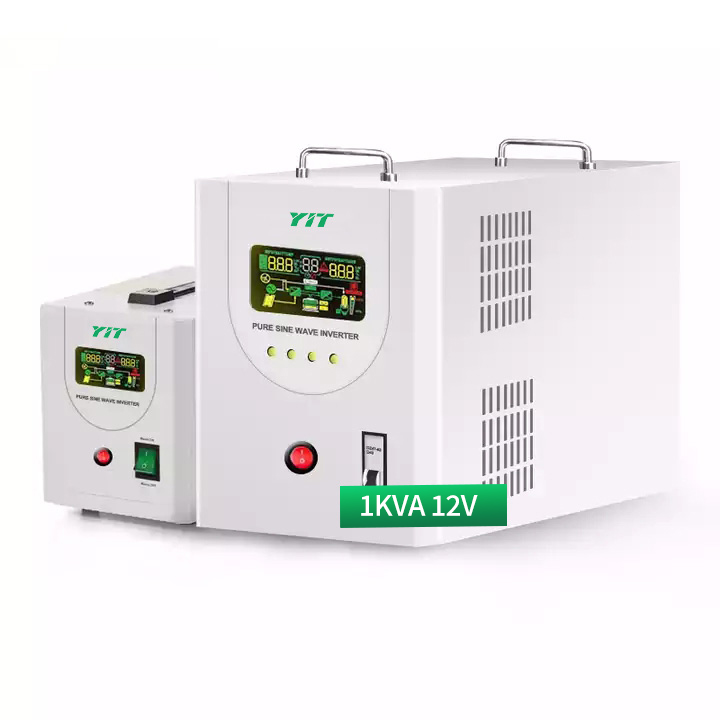

Essential details
- Place of Origin:
Guangdong, China
- Brand Name:
YIT
- Model Number:
HB-1012
- Input Voltage:
140-275Vac
- Output Voltage:
220Vac
- Output Current:
60A
- Output Frequency:
50 Hz/60Hz
- Output Type:
Single
- Size:
512mm*320mm*136mm
- Type:
DC/AC Inverters
- Inverter Efficiency:
700W
- Certificate:
CE
- Warranty:
1year
- Weight:
17.2

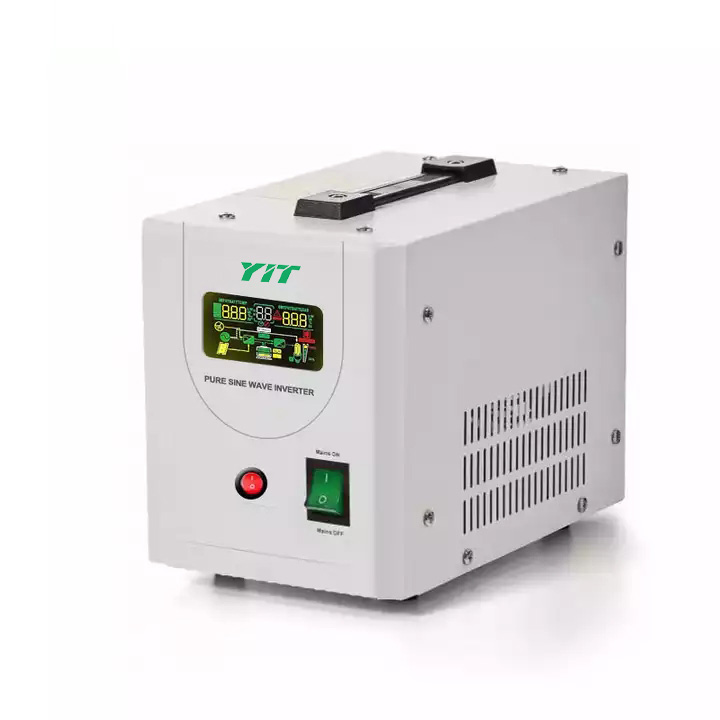

- Product name:
Off-grid solar Inverter
- Model:
HB-1012
- Rated Capacity:
1000VA
- Rated Power:
700W
- MPPT Efficiency:
98-99%
- Transformer:
Toroidal transformer
- Waveform:
Purer Sine Wave
- Customized:
Accept OEM/ODM
- Interface:
LED graphic
- Transfer Time:
≤4ms
Supply Ability
- Supply Ability
- 10000 Piece/Pieces per Month
Packaging & delivery
- Packaging Details
Products are Packing with Stable Cartoon
All equipment and products provided shall be packing with strong packaging suitable for ocean and inland transportation, multiple handling, loading and unloading; and the packaging shall be provided with vibration reduction and shock resistance measures to ensure that they are intact during transportation and loading and unloading.
- Port
Any port ofCchina
- Lead time:
| Quantity(pieces) | 1 - 10 | >10 |
| Lead time (days) | 3 | To be negotiated |
Features：
★Pure sine ware output
★DC Start & Automatic Self-Diagnostic Function
★High Efficiency Design & ”Power Saving Mode” to Conserve Energy
★Auto restart when Ac in recovering
★Smart battery charger design for optimized battery performance
★Selectable charging current based on applications
★Auto Restart Voltage
Product Parameters
Model | HB-500 | HB-800 | HB-1000 | HB-1500 | HB-2000 | HB-2500 | HB-3000 | HB-5000 |
Rated Capacity | 500VA | 800VA | 1000VA | 1500VA | 2000VA | 2500VA | 3000VA | 5000VA |
Rated Power | 300W | 500W | 700W | 1050W | 1400W | 1800W | 2100W | 3500W |
Transformer | Toroidal transformer |
Interface | LED graphic |
Display status | working&loading&battery |

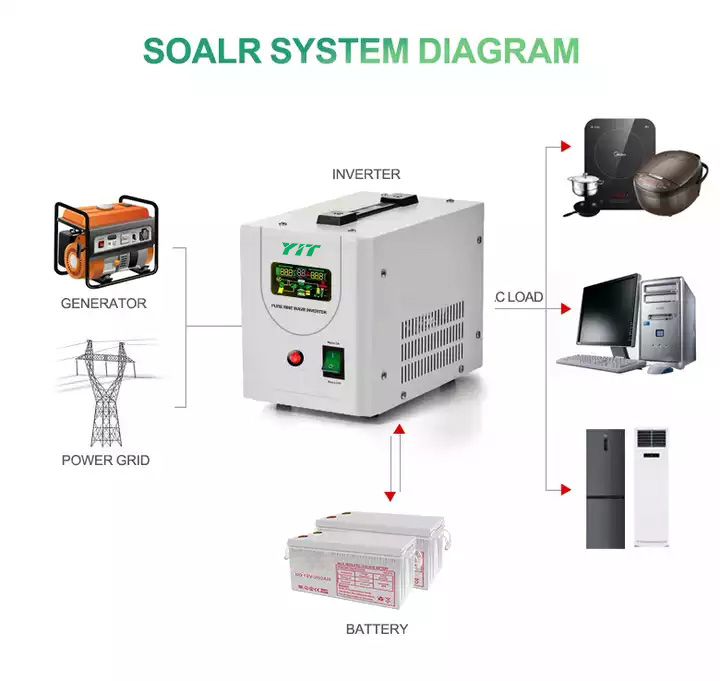

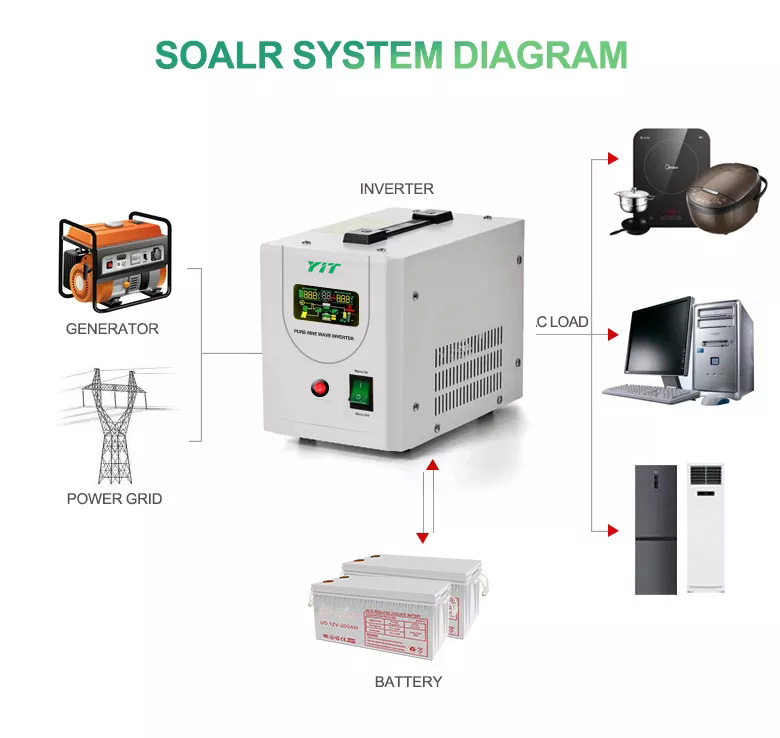

Working mode | PV(Photovoltaic priority)/AC(AC priority) optional |
Input | Voltage | 140-275Vac |
Frequency | 45-65Hz |
Output | Voltage | 220Vac±3% for inveter; 195v-240V for avr |
Frequency | 50/60Hz ± 0.3Hz, subject to the main |
Wave Form | Pure sine wave |
Wave Distortion | ≤3% |
Protection | overload/high temperature/output high voltage /output low voltage/ |
battery low voltage shortcircuit/over-charge/over-discharge/reversed polarity(optional) |
Transfer Time | ≤4ms |
Battery Voltage | 12VDC | 12VDC | 12VDC | 24VDC | 24VDC | 24VDC | 48VDC | 48VDC |
Charge Voltage | 13.6V±0.3V | 13.6V±0.3V | 13.6V±0.3V | 27.2V±0.6V | 27.2V±0.6V | 27.2V±0.6V | 54.5V±1V | 54.5V±1V |
Low Battery Voltage Limit | 10.9V±0.3V | 10.9V±0.3V | 10.9V±0.3V | 21.8V±0.5V | 21.8V±0.5V | 21.8V±0.5V | 42V±1V | 42V±1V |
Protections Battery Low Voltage Protection Point | 10.2V±0.3V | 10.2V±0.3V | 10.2V±0.3V | 20.5V+0.5V | 20.5V+0.5V | 20.5V+0.5V | 41V±1V | 41V±1V |
Charge Current | Max.10A/15A/20A optional |
Environmental | Operating Temperature | 0~40℃ |
Relative Humidity | 10%~90%RH,non-condensing |
Storage Temperature | -15-45℃ |
Packing | Machine Size(mm) | 230x145x180 | 337x146x170 | 355x220x250 |
Qty/Ctn | 4 | 4 | 2 | 2 | 1 | 1 | 1 | 1 |
Carton Size(mm) | 785x305x240 | 415x410x245 | 410x290x320 |
CartonG.W.(kg) | 22 | 26 | 17.2 | 19.1 | 13 | 14.8 | 16.1 | 21 |
