Essential details
- Place of Origin:
Guangdong, China
- Brand Name:
YIT
- Model Number:
YIT-20A-48
- Type:
PWM
- Application:
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller
- Work Time (h):
Continue
- Max PV Voltage:
48v
- Certificate:
ISO9001
- Warranty:
1 YEAR
- MPPT efficiency:
75%
- Protection:
Protection
- Color:
green
- Display:
LCD Screen
- Feature:
High Efficiency Charging Method
- Name:
YIT-20A-48
- Voltage:
48v
- Nominal current:
20a
- Control Mode:
Intelligent Control
Packaging & delivery
- Packaging Details
styrofoam+carton
- Lead time:
| Quantity(bags) | 1 - 50 | >50 |
| Lead time (days) | 7 | To be negotiated |
Our Advantages
❤20 YEARS industrial experience with three production bases in China. Owns advanced equipment and instruments and
builds Automatic production line.
❤Automatic equipment production: stan dardizied quality、high efficiency production.
❤Three-stage smart charging, Adjustable parameters by pressing buttons, 12V/24V/48V adaptive.

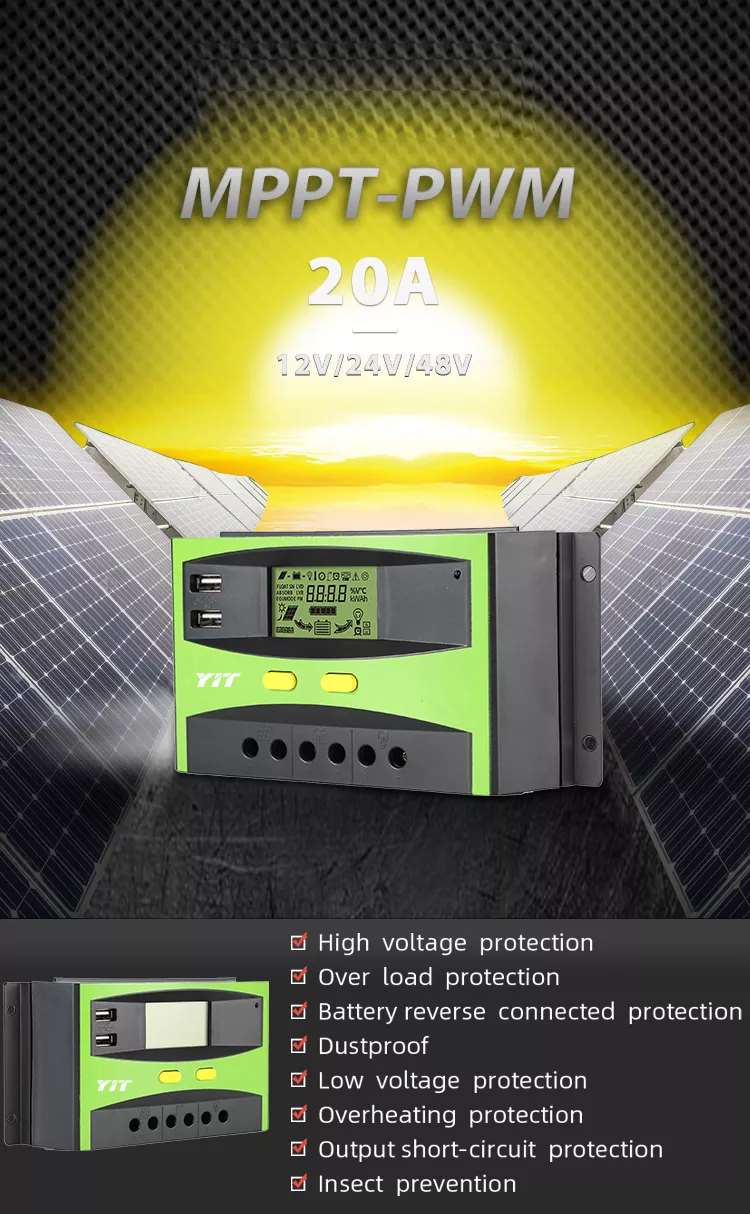

❤Production: High voltage protection,Over load protection,Battery reverse connected protection, Low voltage protection,
Overheating protection, Output short-circuit protection.
❤The maximum utilization rate of solar energy can reach 99%,
With super fast charging algorithm, efficiency increased by 30%
❤ Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and otherCERTIFICATIONS.
Product Paramenters
model | 20A | 30A | 40A | 50A | 60A |
system voltage | 12V/24V(automatic switchover),or 48V |
The maximum voltage input to the solar panel | 50V(12V/24V),100V(48V) |
Loss of self | ≤13MA |
maximum charging current | 20A | 30A | 40A | 50A | 60A |
maximum discharge current | 20A | 30A | 40A | 50A | 60A |
LVD Low voltage protection voltage | 10.7V(10-13.8V),21.4V(20-27.6V),42.8V(40-55.2V) |
LVR Low voltage reset voltage | 12.6V(10.2-14V),25.2V(20.4-28V),50.4V(40.8-56V) |
floating charge voltage | 13.8V(13-15V),27.6V(26-30V),55.2V(52-60V) |
Battery overvoltage protection | 15V/30V/60V |
Input reverse connection protection | yes |
charging mode | PWM |
temperature compensation | -24mv/℃,-48mv/℃,-96mv/℃, relative to 12V/24V/48Vsystem |
operating temperature | -20℃-+55℃ |
Terminal scale | 28-10AWG |
waterproof rating | IP32 |

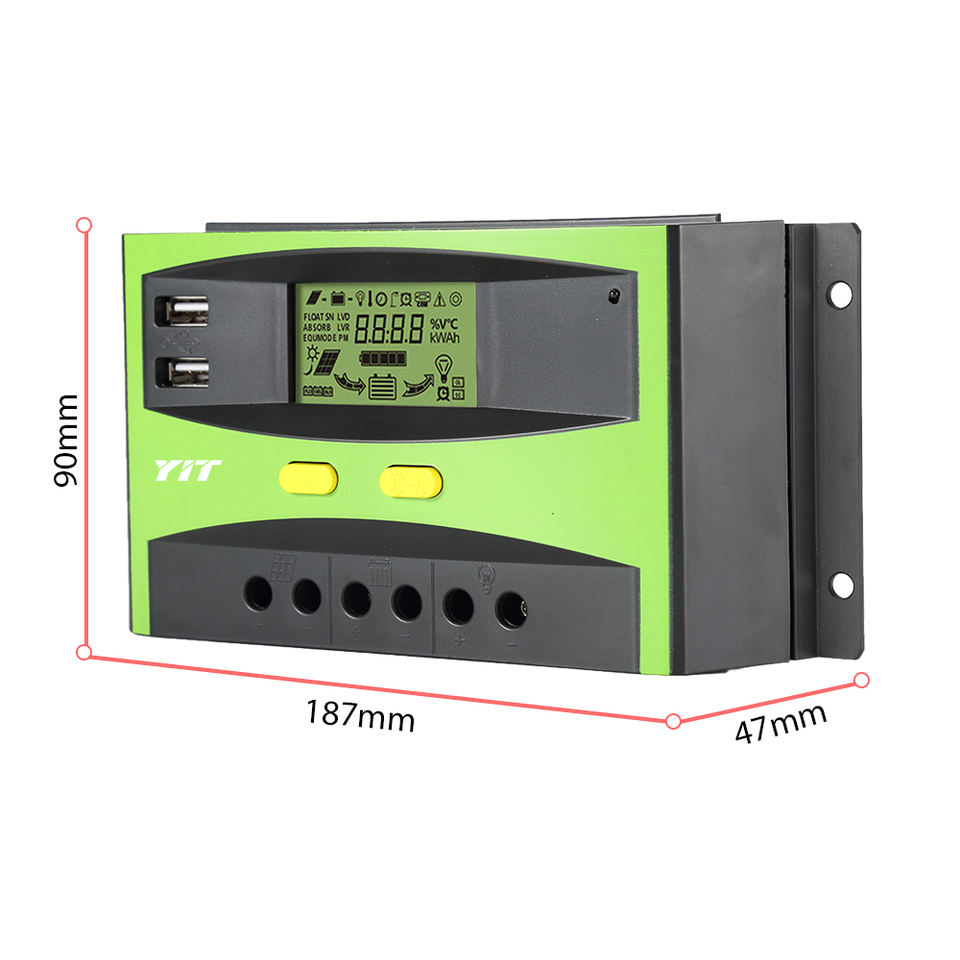

product size | 20-30A(187*90*47mm) | 40A(195*107*50mm) 5 | 50-60A(187*122*57mm) |
package size | 200*102*53mm | 210*118*59mm | 200*132*63mm |
Net weight | 320g | 340g | 588g |
